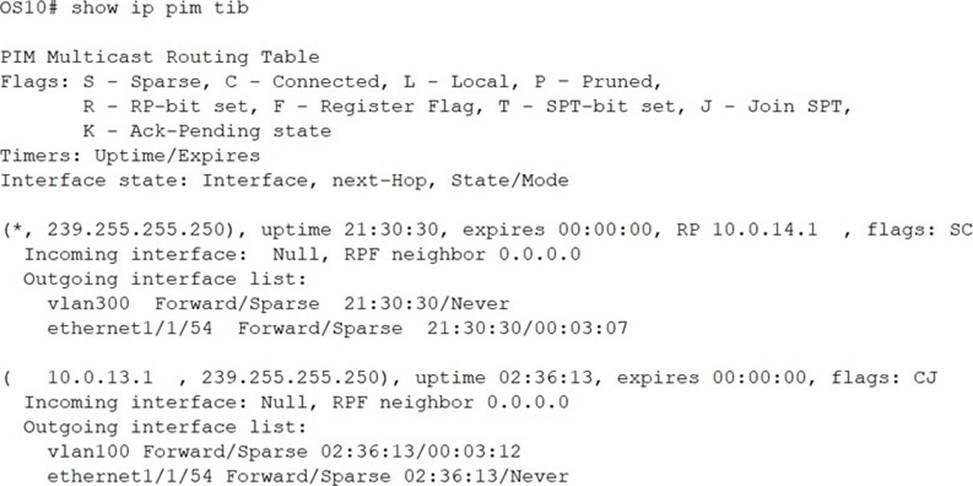

Refer to the exhibit.
Where is the rendezvous point for the group 239.255.255.250?
- A . 10.0.13.1
- B . 10.0.14.1
- C . eth1/1/54
- D . vlan300
What are the correct commands that configure the DHCP lease from pool DC1 to never expire?
- A . OS10(config)# ip dhcp server OS10(config-dhcp)# pool DC1 accounting OS10(config-dhcp-DC1)#no lease expire
- B . OS10(config)# ip dhcp server OS10(config-dhcp)# pool DC1 accounting OS10(config-dhcp-DC1)# no expire
- C . OS10(config)#dhcp server OS10(config-dhcp)# pool DC1 OS10(config-dhcp-DC1)# no lease expire
- D . OS10(config)# ip dhcp server OS10(config-dhcp)# pool DC1 OS10(config-dhcp-DC1)#lease infinite

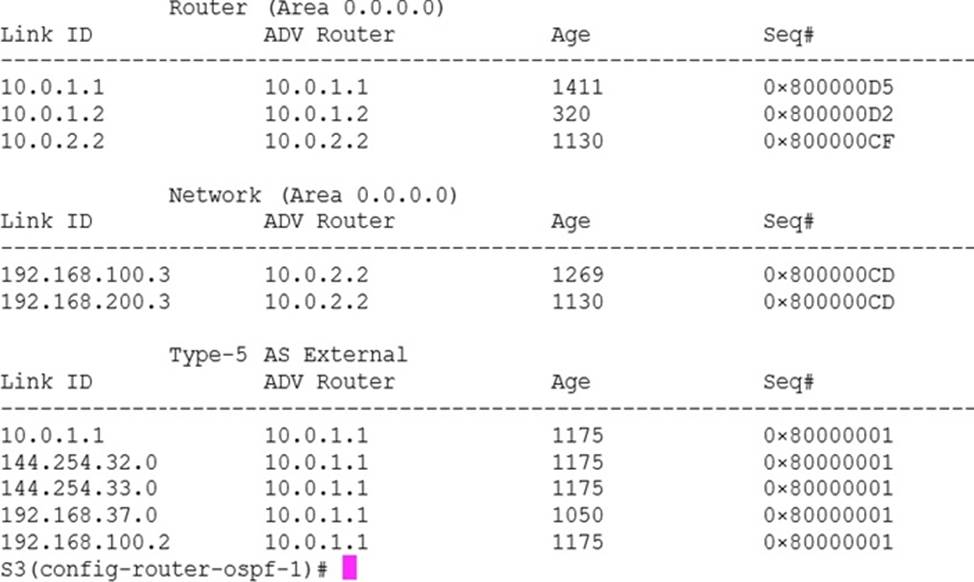

Refer to the exhibit.
The output shown is from which command?
- A . S3(config-router-ospf-1)# show ip ospf database
- B . S3(config-router-ospf-1)# show ip ospf topology
- C . S3(config-router-ospf-1)# show ip ospf lsa
- D . S3(config-router-ospf-1)# show ip ospf statistics
What is a valid OS10 iBGP configuration?
- A . S2(config)# router bgp 64507
S2(config-router-bgp-64507)# peer-as 64507
S2(config-router-bgp-64507)# neighbor 192.168.32.1
S2(config-router-neighbor)# update-source loopback 0
S2(config-router-neighbor)# no shutdown - B . S2(config)# router bgp 64507
S2(config-router-bgp-64507)# neighbor 192.168.32.1
S2(config-router-bgp-64507)# remote-as 64507
S2(config-router-bgp-64507)# update-source loopback 0
S2(config-router-bgp-64507)# no shutdown - C . S2(config)# router bgp 64507
S2(config-router-bgp-64507)# neighbor 192.168.32.1
S2(config-router-neighbor)# remote-as 64507
S2(config-router-neighbor)# update-source loopback 0
S2(config-router-neighbor)# no shutdown - D . S2(config)# router bgp 64507
S2(config-router-bgp-64507)# remote-as 64507
S2(config-router-bgp-64507)# neighbor 192.168.32.1
S2(config-router-neighbor)# update-source loopback 0
S2(config-router-neighbor)# no shutdown
What is a benefit of adding a virtual router partition in OS10?
- A . Allows VRRP to work in an active-active manner.
- B . Allow production traffic to have multiple redundant gateways.
- C . Allows for management interface to have an isolated routing table.
- D . Allows multiple logical IP subnets on a single LAN segment.
A customer reports they can no longer access their services and a network administrator has been assigned to investigate. A UFD disabled error status appears on all ports.
What caused the issue?
- A . Spanning tree Loop-guard was implemented on the uplink-state group.
- B . One of the upstream interfaces is an uplink-state group went down.
- C . There was no issue; this is normal behavior.
- D . Both a port channel and its members were assigned to an uplink-state group.
A router needs to be configured to allow multiple multicast servers for the same group to be presented only to ports where active listeners reside. Each listener may exclude non-preferred servers.
What is the minimum multicast configuration level required on the router?
- A . IGMPv3 without snooping PIM-SSM
- B . IGMPv2 with snooping PIM-SSM
- C . IGMPv3 with snooping PIM-SSM
- D . IGMPv3 with snooping PIM-SM
What is the valid range of VLAN IDs for Dell EMC Networking OS10 switches?
- A . 1-4096
- B . 1-4093
- C . 0-4092
- D . 0-4095
Which multicast address do all OSPF routers use?
- A . 224.0.0.6
- B . 239.0.0.6
- C . 239.0.0.4
- D . 224.0.0.5
In a PIM Sparse Mode (PIM-SM) based multicast topology, what function does the Rendezvous Point provide?
- A . The node is used to provide IGMP snooping across a layer 3 boundary.
- B . The root node of the source tree topology is used to provide routing between the source and receiver.
- C . The root node of the shared tree topology is used to provide routing between the source and receiver.
- D . The node is used to provide IGMP snooping on a layer 2 shared segment.
