Juniper JN0-105 Übungsprüfungen
Zuletzt aktualisiert am 26.04.2025- Prüfungscode: JN0-105
- Prüfungsname: Junos, Associate (JNCIA-Junos)
- Zertifizierungsanbieter: Juniper
- Zuletzt aktualisiert am: 26.04.2025

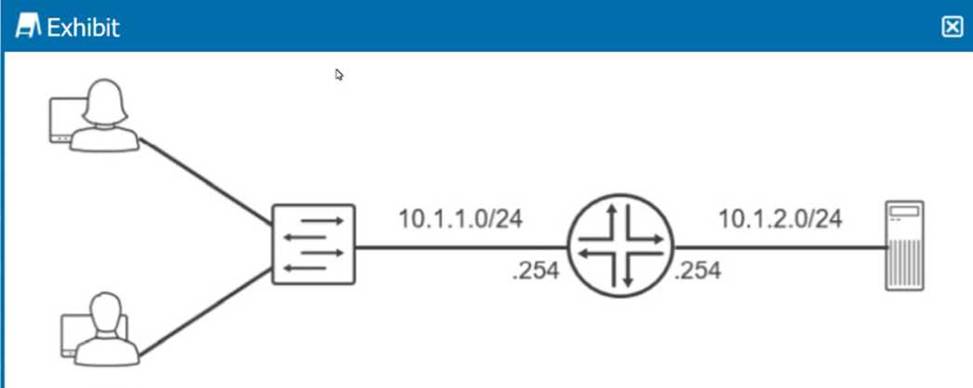

Exhibit.
Referring to the exhibit, which routing configuration is required for these two users to access the remote server?
- A . Users must connect directly to the router.
- B . Users and the server require a default gateway.
- C . Trunk ports must be enabled on the switch.
- D . A routing protocol must be enabled on the router.
You have just increased the MTU size of interface ge-0/0/0 and committed the configuration .
Which command would help you identify the applied MTU change?
- A . monitor interface ge-0/0/0
- B . monitor traffic interface ge-0/0/0
- C . show interfaces ge-0/0/0 terse
- D . show interfaces ge-0/0/0
Which component is considered part of the data plane?
- A . the Routing Engine
- B . the Packet Forwarding Engine
- C . the power supply
- D . the fan tray
You issue the monitor traffic interface ge-0/0/0 command.
What will this command accomplish?
- A . It displays real-time statistics for interface ge-0/0/0.
- B . It displays an operational summary of ge-0/0/0.
- C . It displays the MTU and MAC address for ge-0/0/0.
- D . It displays a packet capture on interface ge-0/0/0.
What are two examples of exception traffic? (Choose two.)
- A . transit packets
- B . routing updates
- C . log messages
- D . ping to the local device

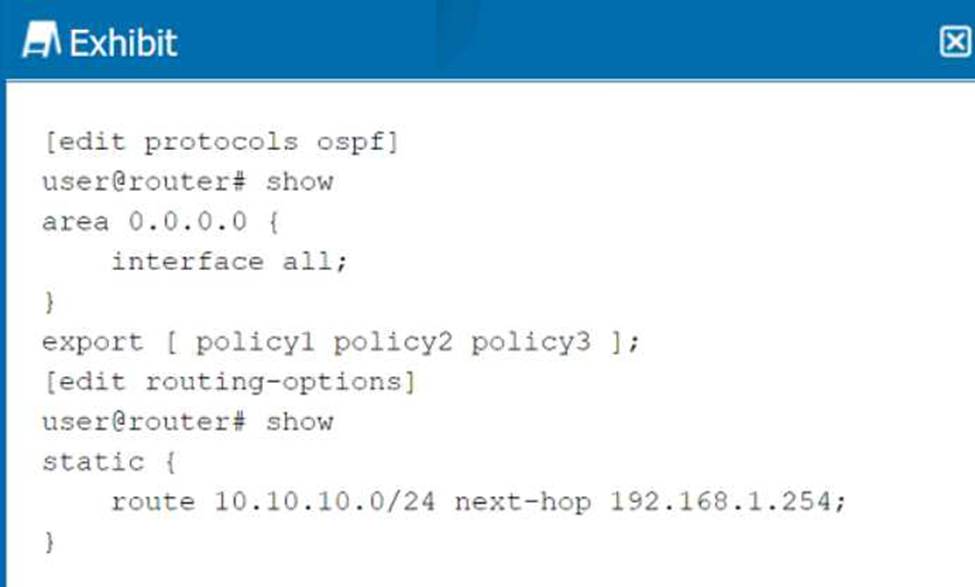

Click the Exhibit button.
Referring to the exhibit, OSPF has three export policies that match different static route prefixes. The 10.10.10.0/24 static route does not match any terms in the policy1 routing policy .
What happens next in this scenario?
- A . The static route is evaluated by the poiicy3 routing policy.
- B . The static route is evaluated by the poiicy2 routing policy.
- C . The static route is rejected by the default routing policy.
- D . The static route is rejected by the policy1 routing policy.
What will the request system configuration rescue save command do?
- A . It saves the most recently committed configuration as the rescue configuration.
- B . It saves the candidate configuration as the rescue configuration.
- C . It saves a configuration version prior to the configuration most recently committed as the rescue configuration.
- D . It activates the rescue configuration.
A network administrator is attempting to route traffic on a Juniper switch to one of three different
VLANs: Prod, Test, and Dev. Each VLAN has been assigned a numerical value.
In this scenario, what are these numerical values called?
- A . defaults
- B . interfaces
- C . names
- D . tags
What type of device uses the destination IP address to forward packets?
- A . Layer 2 switch
- B . Layer 3 router
- C . Layer 1 repeater
- D . Multilayer switch
