DRAG DROP

You have an Azure subscription that contains a storage account.

You have an on-premises server named Server1 that runs Window Server 2016. Server1 has 2 TB of data.

You need to transfer the data to the storage account by using the Azure Import/Export service.

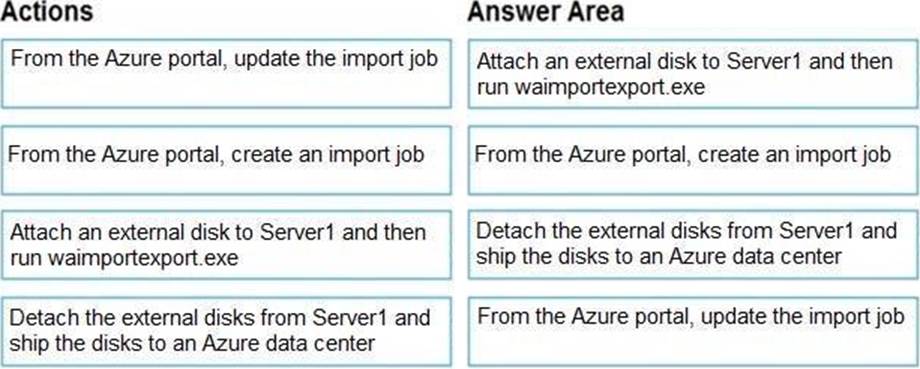

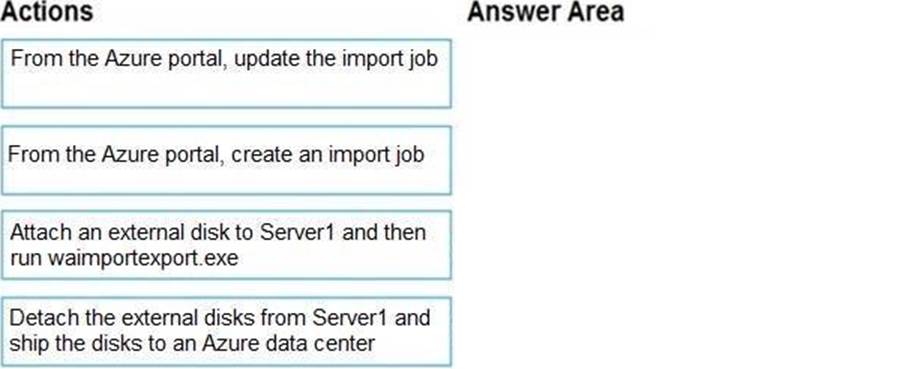

In which order should you perform the actions? To answer, move all actions from the list of actions to the answer area and arrange them in the correct order. NOTE: More than one order of answer choices is correct. You will receive credit for any of the correct orders you select.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

At a high level, an import job involves the following steps:

Step 1: Attach an external disk to Server1 and then run waimportexport.exe

Determine data to be imported, number of drives you need, destination blob location for your data in Azure storage.

Use the WAImportExport tool to copy data to disk drives. Encrypt the disk drives with BitLocker.

Step 2: From the Azure portal, create an import job.

Create an import job in your target storage account in Azure portal. Upload the drive journal files.

Step 3: Detach the external disks from Server1 and ship the disks to an Azure data center.

Provide the return address and carrier account number for shipping the drives back to you.

Ship the disk drives to the shipping address provided during job creation.

Step 4: From the Azure portal, update the import job

Update the delivery tracking number in the import job details and submit the import job.

The drives are received and processed at the Azure data center.

The drives are shipped using your carrier account to the return address provided in the import job.

Reference: https://docs.microsoft.com/en-us/azure/storage/common/storage-import-export-service

HOTSPOT

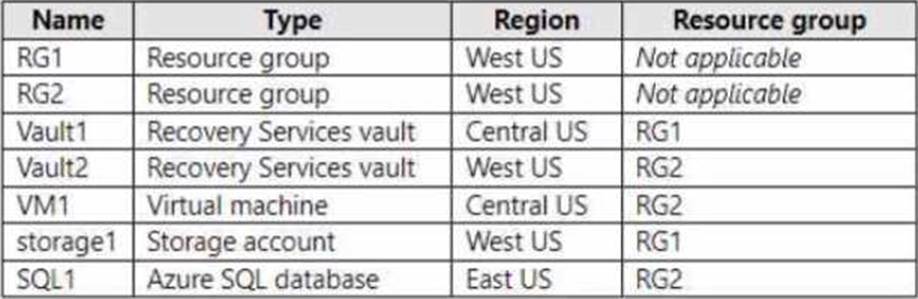

You have an Azure subscription named Subscription! that contains the resources shown in the following table.

In storage1, you create a blob container named blob1 and a file share named share1.

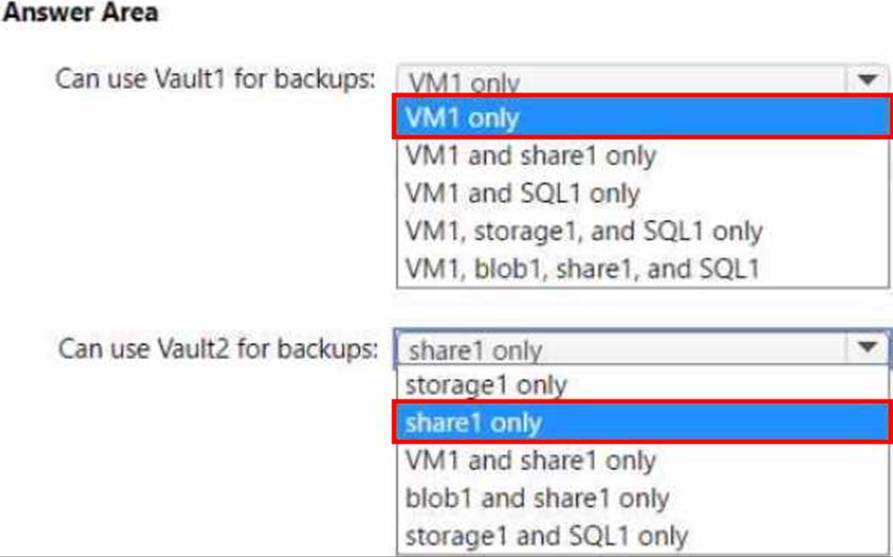

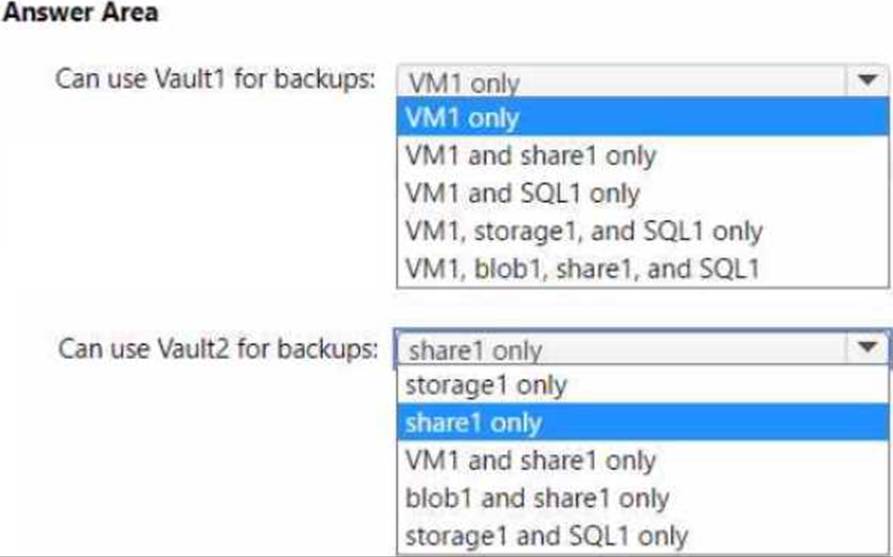

Which resources can be backed up to Vault1 and Vault2? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

HOTSPOT

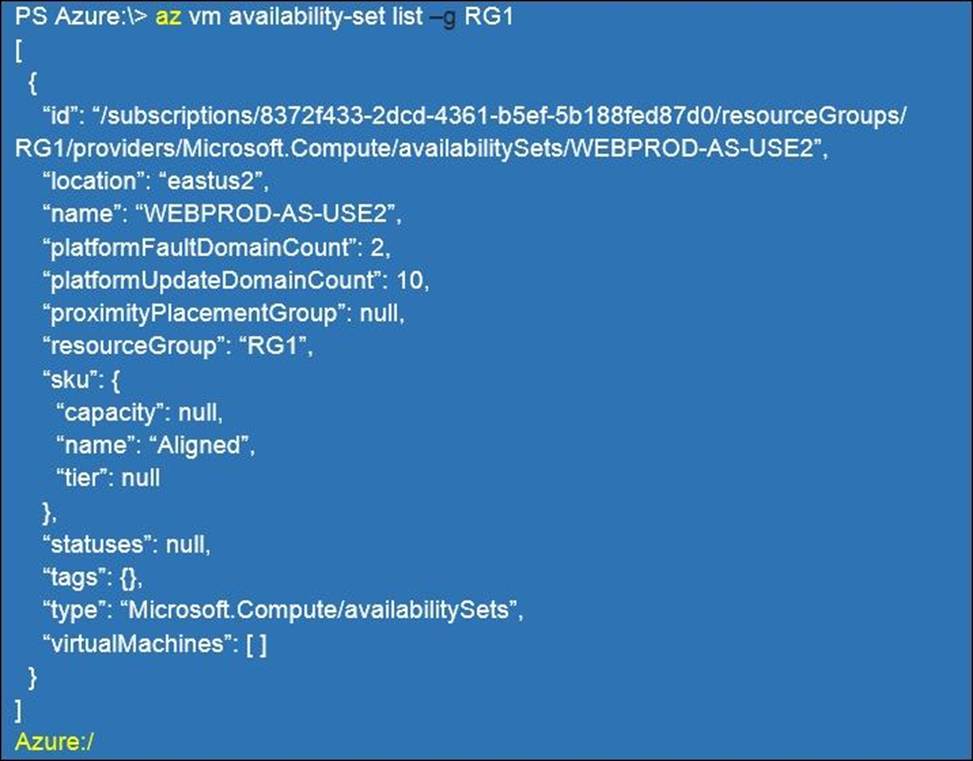

You have an Azure subscription that contains an Azure Availability Set named WEBPROD-AS-USE2 as shown in the following exhibit.

You add 14 virtual machines to WEBPROD-AS-USE2.

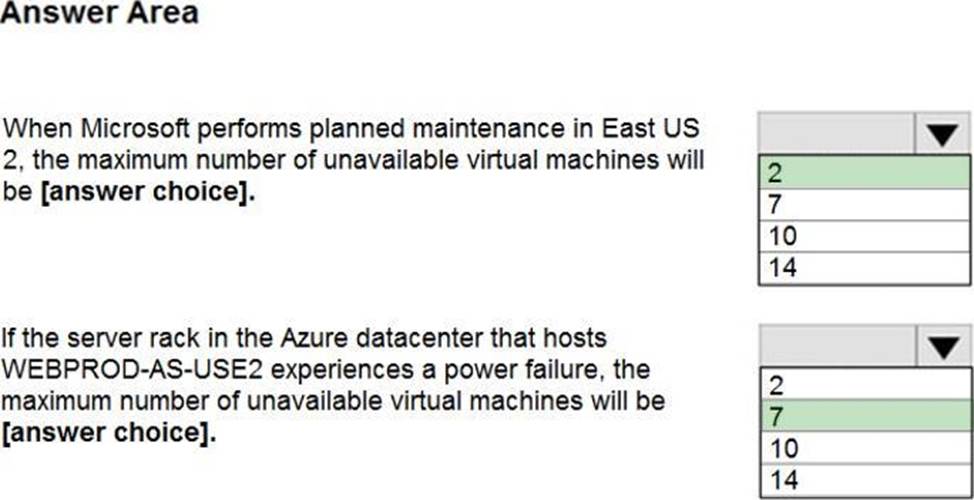

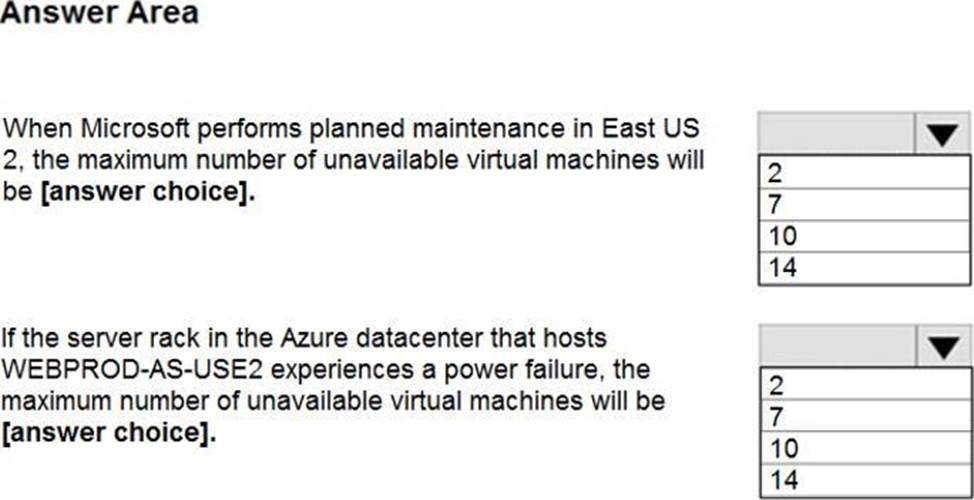

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

Box 1: 2

There are 10 update domains. The 14 VMs are shared across the 10 update domains so four update domains will have two VMs and six update domains will have one VM. Only one update domain is rebooted at a time.

Therefore, a maximum of two VMs will be offline.

Box 2: 7

There are 2 fault domains. The 14 VMs are shared across the 2 fault domains, so 7 VMs in each fault domain.

A rack failure will affect one fault domain so 7 VMs will be offline.

Reference: https://docs.microsoft.com/en-us/azure/virtual-machines/windows/manage-availability

HOTSPOT

You have three Azure subscriptions named Sub1, Sub2, and Sub3 that are linked to an Azure AD tenant.

The tenant contains a user named User1, a security group named Group1, and a management group named MG1. User1 is a member of Group1.

Sub1 and Sub2 are members of MG1. Sub1 contains a resource group named RG1. RG1 contains five Azure functions.

You create the following role assignments for MG1:

• Group1: Reader

• User1: User Access Administrator

You assign User1 the Virtual Machine Contributor role for Sub1 and Sub2.

You assign User1 the Contributor role for RG1.

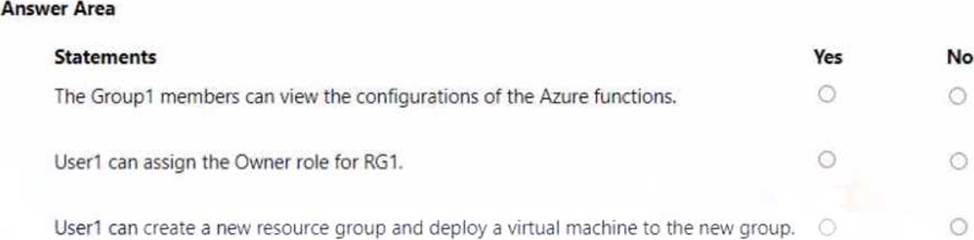

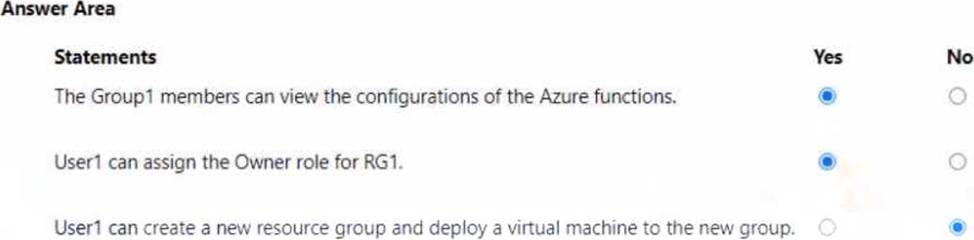

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

HOTSPOT

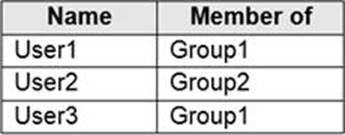

You have an Azure subscription that contains an Azure Storage account named storage1 and the users shown in the following table.

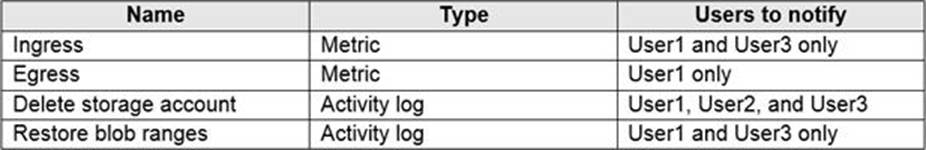

You plan to monitor storage1 and to configure email notifications for the signals shown in the following table.

You need to identify the minimum number of alert rules and action groups required for the planned monitoring.

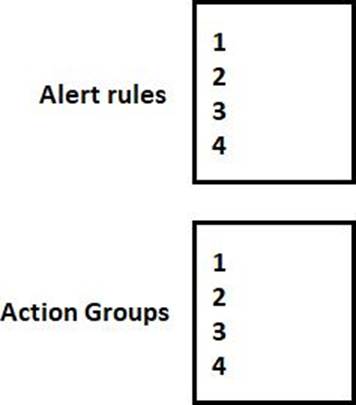

How many alert rules and action groups should you identify? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

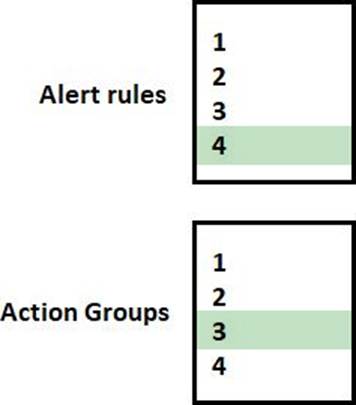

Box 1: 4

As there are 4 distinct set of resource types (Ingress, Egress, Delete storage account, Restore blob ranges), so you need 4 alert rules. In one alert rule you can’t specify different type of resources to monitor. So you need 4 alert rules.

Box 2: 3

There are 3 distinct set of "Users to notify" as (User 1 and User 3), (User1 only), and (User1, User2, and User3). You can’t set the action group based on existing group (Group1 and Group2) as there is no specific group for User1 only. So you need to create 3 action group.

Reference: https://docs.microsoft.com/en-us/azure/azure-monitor/platform/action-groups

HOTSPOT

You have an Azure subscription named Subscription1. Subscription1 contains a virtual machine named VM1.

You install and configure a web server and a DNS server on VM1.

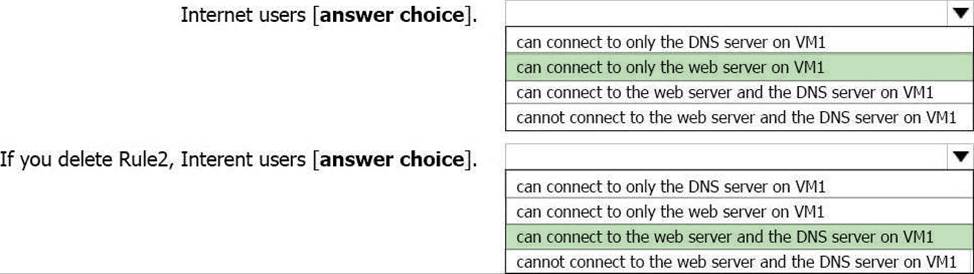

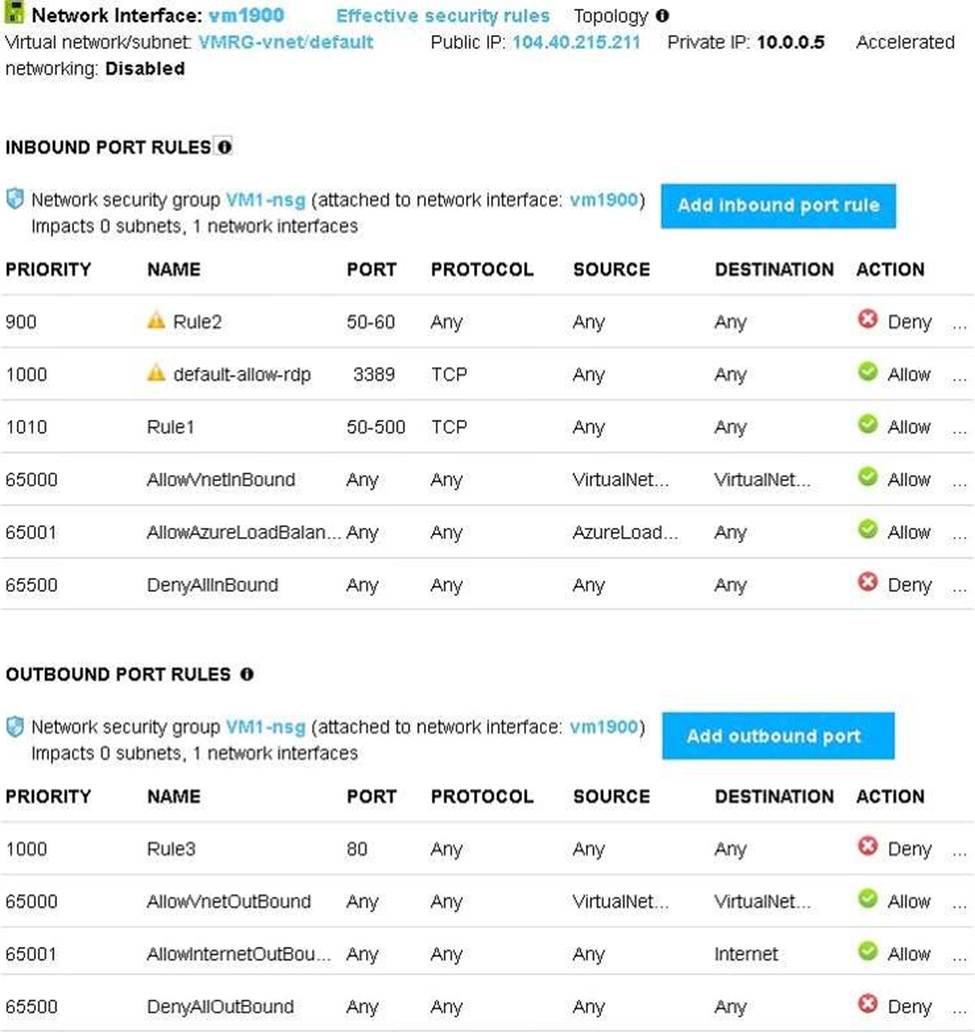

VM1 has the effective network security rules shown in the following exhibit.

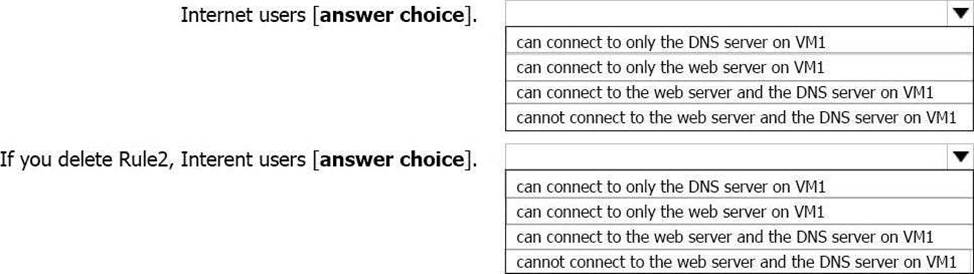

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

A number between 100 and 4096. Rules are processed in priority order, with lower numbers processed before higher numbers, because lower numbers have higher priority. Once traffic matches a rule, processing stops. As a result, any rules that exist with lower priorities (higher numbers) that have the same attributes as rules with higher priorities are not processed. https://docs.microsoft.com/en-us/azure/virtual-network/network-security-groups-overview

You have an Azure Storage account named storage1 that contains a blob container named containers You need to prevent new content added to container! from being modified for one year.

What should you configure?

Lösung einblenden Lösung ausblenden

HOTSPOT

You have Azure subscriptions named Subscription1 and Subscription2.

Subscription1 has following resource groups:

RG1 includes a web app named App1 in the West Europe location.

Subscription2 contains the following resource groups:

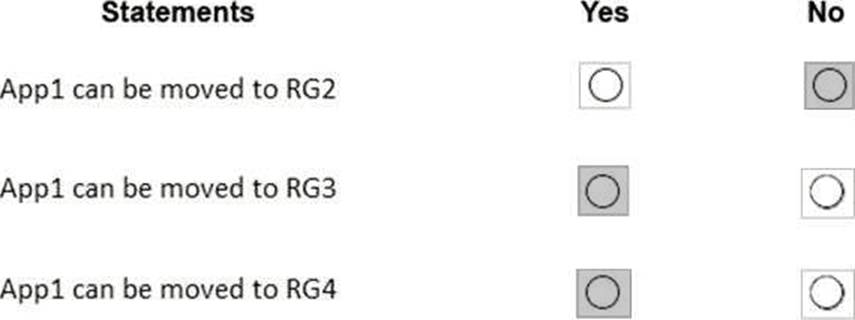

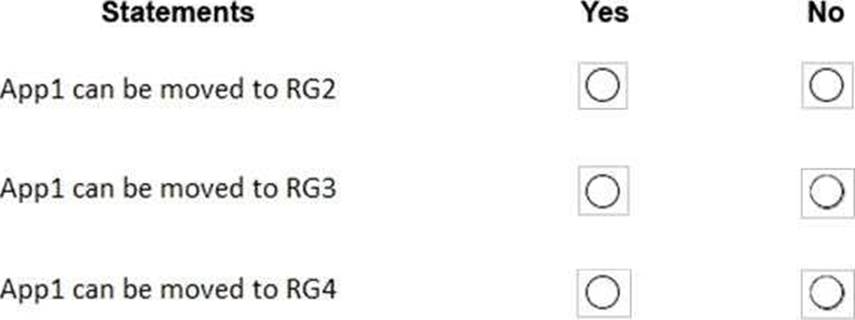

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

App1 present in RG1 and in RG1 there is no lock available. So you can move App1 to other resource groups, RG2, RG3, RG4.

Note:

App Service resources can only be moved from the resource group in which they were originally created. If an App Service resource is no longer in its original resource group, move it back to its original resource group.

Reference: https://docs.microsoft.com/en-us/azure/azure-resource-manager/management/move-limitations/app-service-move-limitations

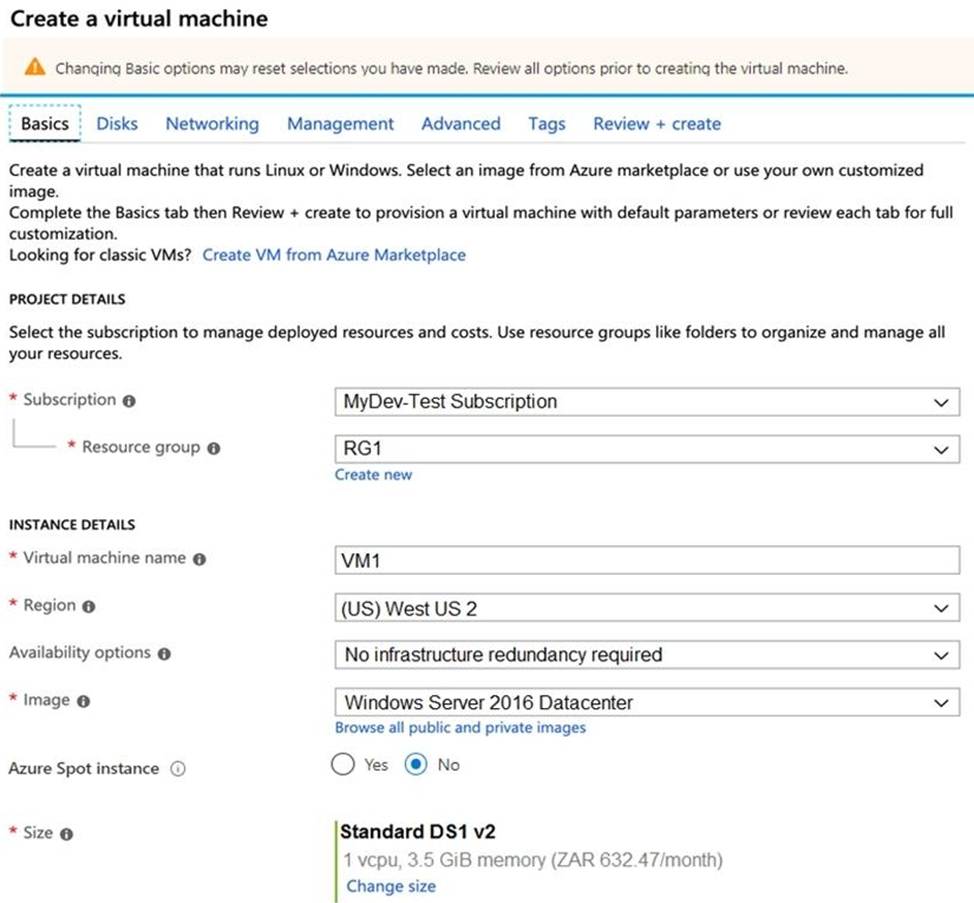

You plan to create an Azure virtual machine named VM1 that will be configured as shown in the following exhibit.

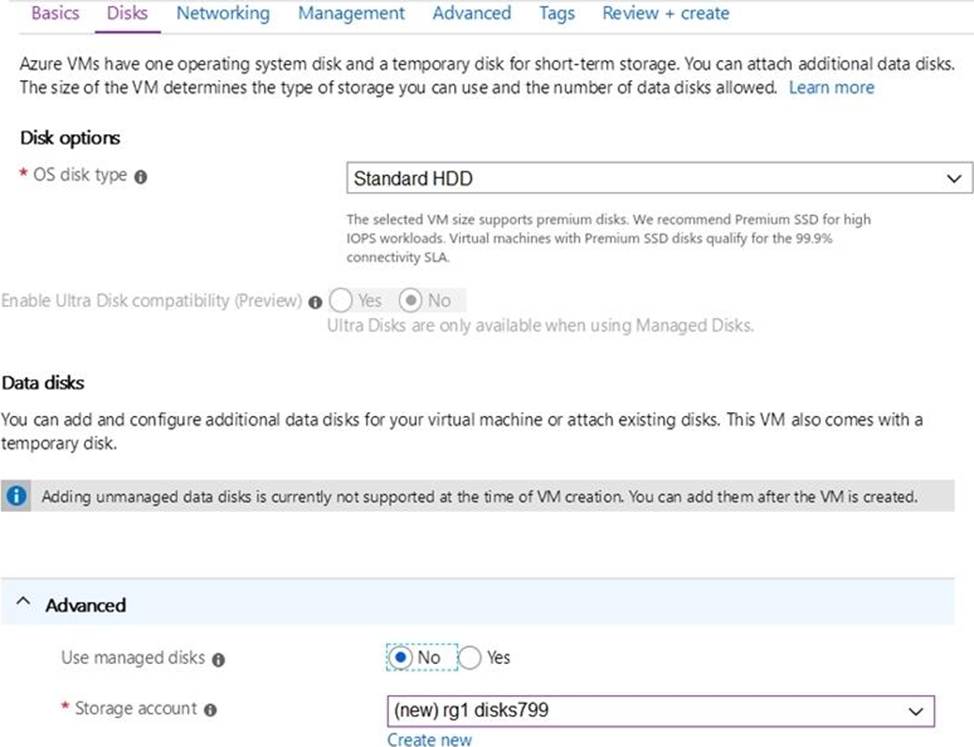

The planned disk configurations for VM1 are shown in the following exhibit.

You need to ensure that VM1 can be created in an Availability Zone.

Which two settings should you modify? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

You plan to move a distributed on-premises app named App1 to an Azure subscription.

After the planned move, App1 will be hosted on several Azure virtual machines.

You need to ensure that App1 always runs on at least eight virtual machines during planned Azure maintenance.

What should you create?

Lösung einblenden Lösung ausblenden
