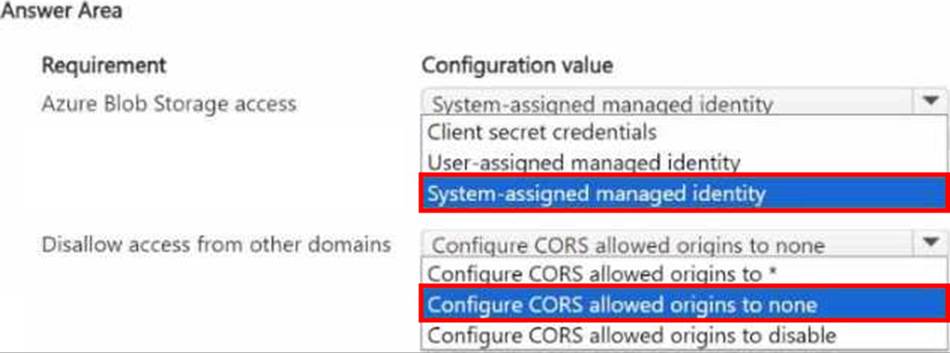

You are developing an Azure Functions app named App1. You also plan to use cross-origin requests (CORS).

You have the following requirements:

• App1 functions must securely access an Azure Blob Storage account.

• Access to the Azure Blob Storage account must not require the provisioning or rotation of secrets.

• JavaScript code running in a browser on an external host must not be allowed to interact with the function.

You need to implement App1.

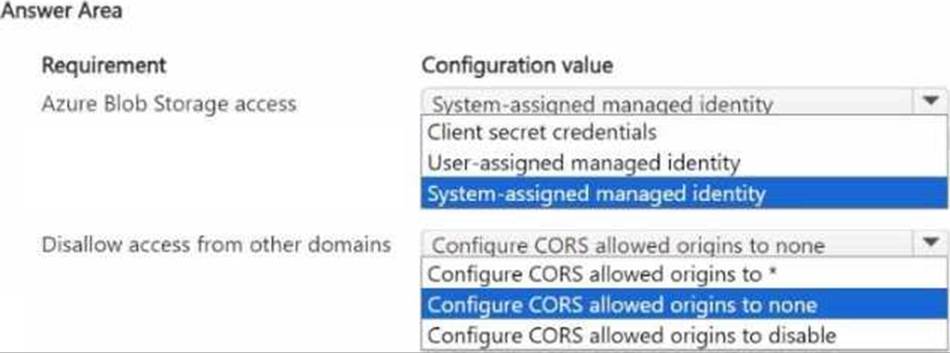

Which configuration should you use? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

HOTSPOT

You are developing an Azure Function App. You develop code by using a language that is not supported by the Azure Function App host. The code language supports HTTP primitives.

You must deploy the code to a production Azure Function App environment.

You need to configure the app for deployment.

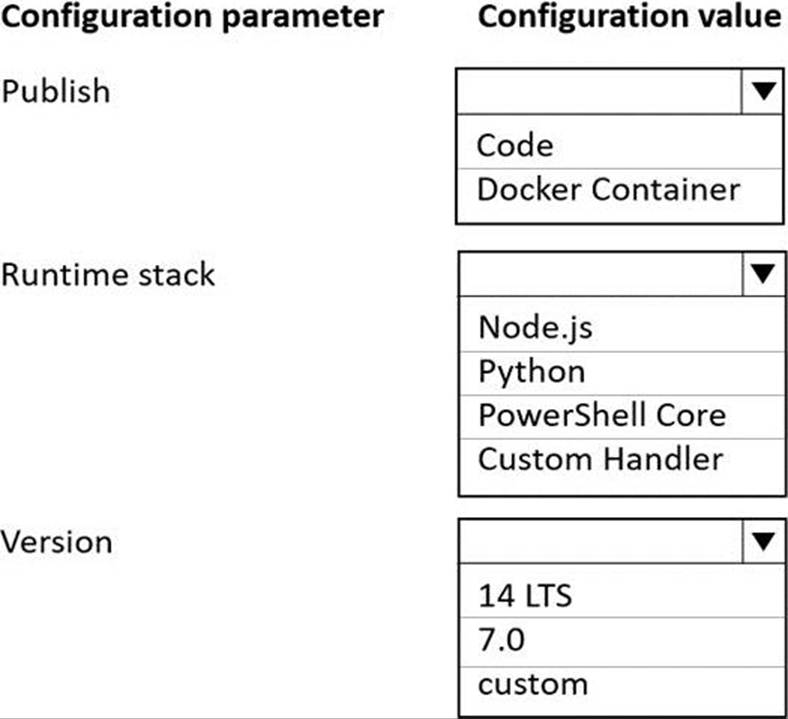

Which configuration values should you use? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

Box 1: Docker container

A custom handler can be deployed to every Azure Functions hosting option. If your handler requires operating system or platform dependencies (such as a language runtime), you may need to use a custom container. You can create and deploy your code to Azure Functions as a custom Docker container.

Box 2: PowerShell core

When creating a function app in Azure for custom handlers, we recommend you select .NET Core as the stack. A "Custom" stack for custom handlers will be added in the future.

PowerShell Core (PSC) is based on the new .NET Core runtime.

Box 3: 7.0

On Windows: The Azure Az PowerShell module is also supported for use with PowerShell 5.1 on Windows.

On Linux: PowerShell 7.0.6 LTS, PowerShell 7.1.3, or higher is the recommended version of PowerShell for use with the Azure Az PowerShell module on all platforms.

Reference:

https://docs.microsoft.com/en-us/azure/azure-functions/functions-create-function-linux-custom-image

https://docs.microsoft.com/en-us/powershell/azure/install-az-ps?view=azps-7.1.0

You deploy an Azure App Service web app. You create an app registration for the app in Azure Active Directory (Azure AD) and Twitter. the app must authenticate users and must use SSL for all communications. The app must use Twitter as the identity provider. You need to validate the Azure AD request in the app code.

What should you validate?

Lösung einblenden Lösung ausblenden

Topic 4, Proseware, Inc

Case study

Overview

This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.

To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.

At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.

To start the case study

To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. When you are ready to answer a question, click the Question button to return to the question.

Background

You are a developer for Proseware, Inc. You are developing an application that applies a set of governance policies for Proseware’s internal services, external services, and applications. The application will also provide a shared library for common functionality.

Requirements

Policy service

You develop and deploy a stateful ASP.NET Core 2.1 web application named Policy service to an Azure App Service Web App. The application reacts to events from Azure Event Grid and performs policy actions based on those events.

The application must include the Event Grid Event ID field in all Application Insights telemetry.

Policy service must use Application Insights to automatically scale with the number of policy actions that it is performing.

Policies

Log policy

All Azure App Service Web Apps must write logs to Azure Blob storage. All log files should be saved to a container named logdrop. Logs must remain in the container for 15 days.

Authentication events

Authentication events are used to monitor users signing in and signing out. All authentication events must be processed by Policy service. Sign outs must be processed as quickly as possible.

PolicyLib

You have a shared library named PolicyLib that contains functionality common to all ASP.NET Core web services and applications.

The PolicyLib library must:

✑ Exclude non-user actions from Application Insights telemetry.

✑ Provide methods that allow a web service to scale itself.

✑ Ensure that scaling actions do not disrupt application usage.

Other

Anomaly detection service

You have an anomaly detection service that analyzes log information for anomalies. It is implemented as an Azure Machine Learning model. The model is deployed as a web service. If an anomaly is detected, an Azure Function that emails administrators is called by using an HTTP WebHook.

Health monitoring

All web applications and services have health monitoring at the /health service endpoint.

Issues

Policy loss

When you deploy Policy service, policies may not be applied if they were in the process of being applied during the deployment.

Performance issue

When under heavy load, the anomaly detection service undergoes slowdowns and rejects connections.

Notification latency

Users report that anomaly detection emails can sometimes arrive several minutes after an anomaly is detected.

App code

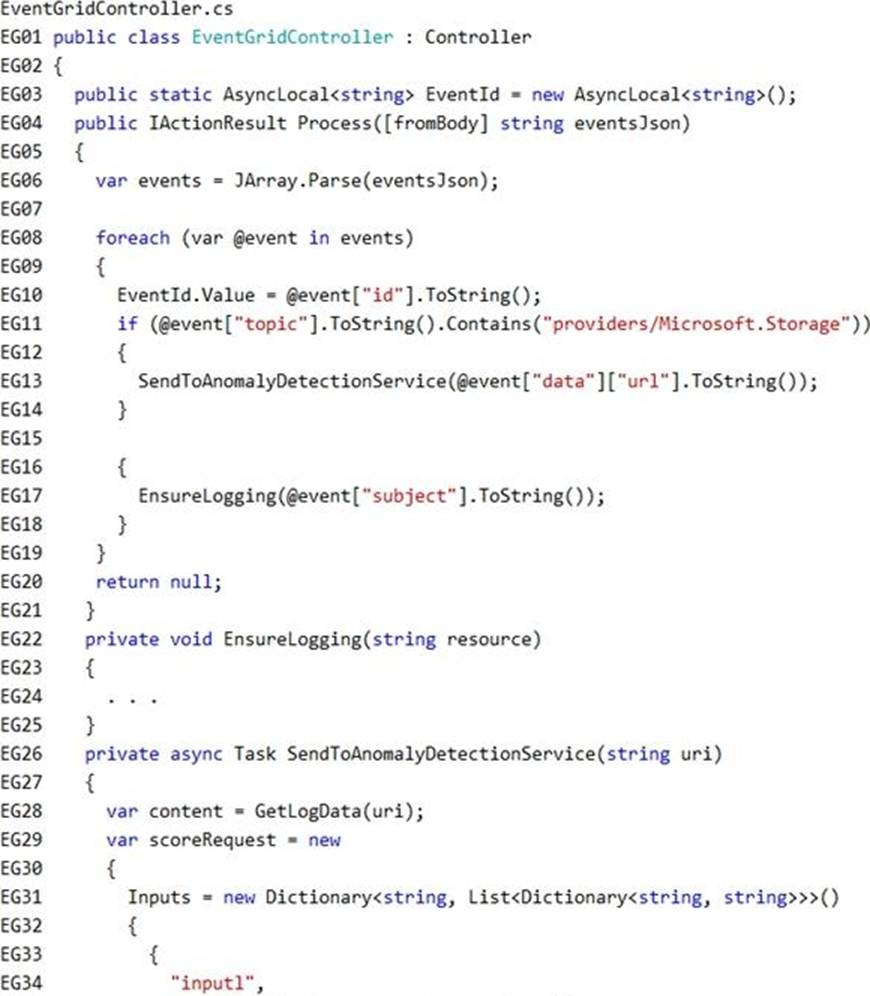

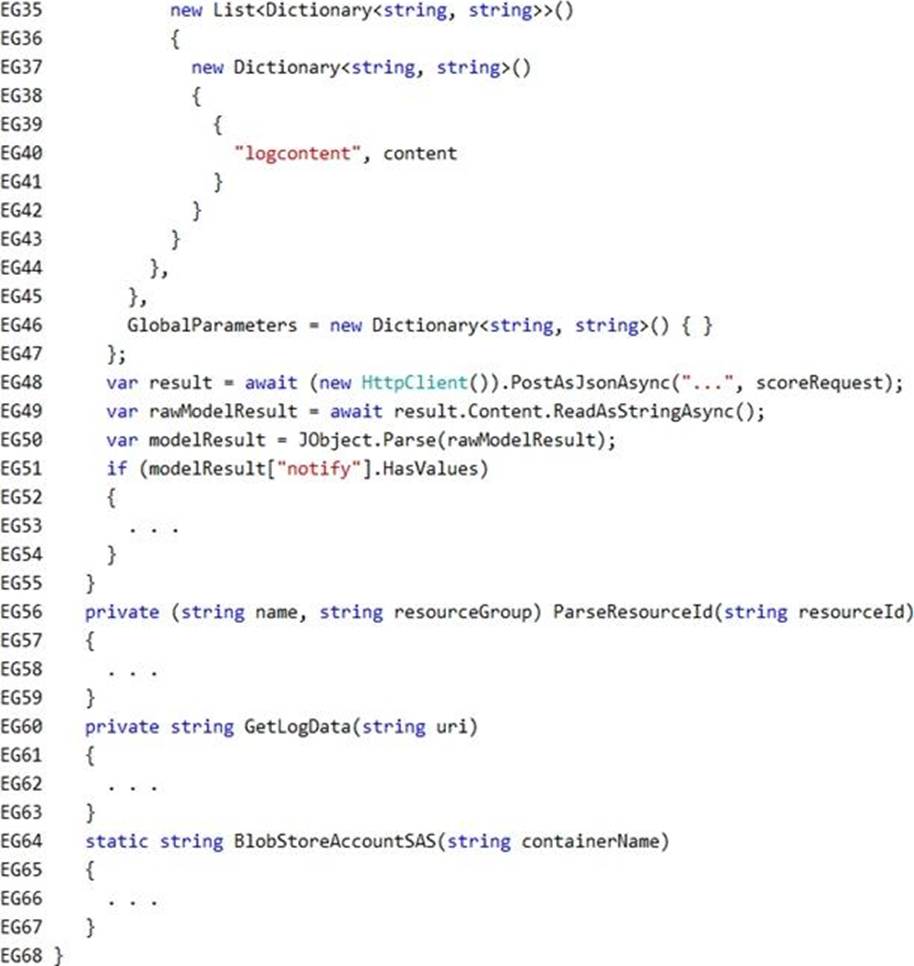

EventGridController.cs

Relevant portions of the app files are shown below. Line numbers are included for reference only and include a two-character prefix that denotes the specific file to which they belong.

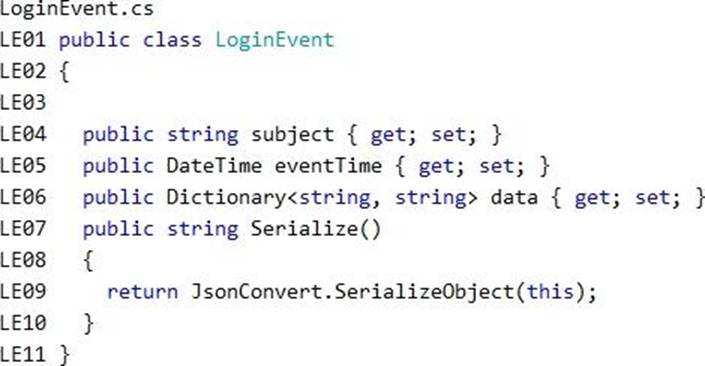

LoginEvent.cs

Relevant portions of the app files are shown below. Line numbers are included for reference only and include a two-character prefix that denotes the specific file to which they belong.

You need to resolve a notification latency issue.

Which two actions should you perform? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

DRAG DROP

You develop an Azure solution that uses Cosmos DB.

The current Cosmos DB container must be replicated and must use a partition key that is optimized for queries.

You need to implement a change feed processor solution.

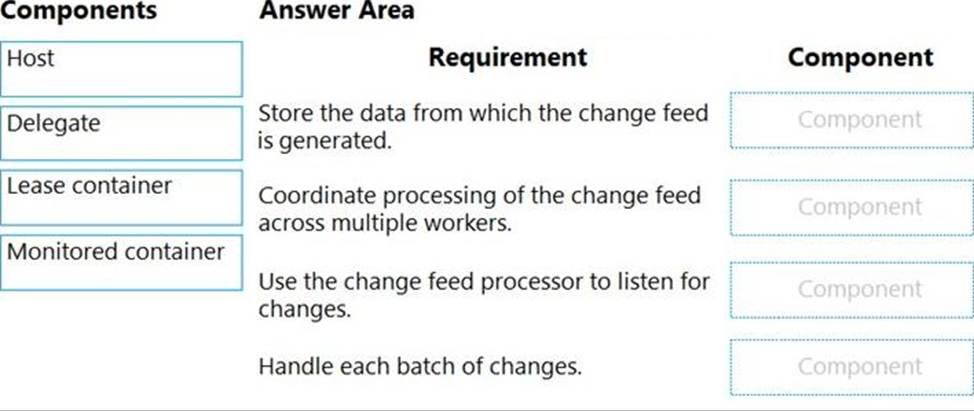

Which change feed processor components should you use? To answer, drag the appropriate components to the correct requirements. Each component may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view the content. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

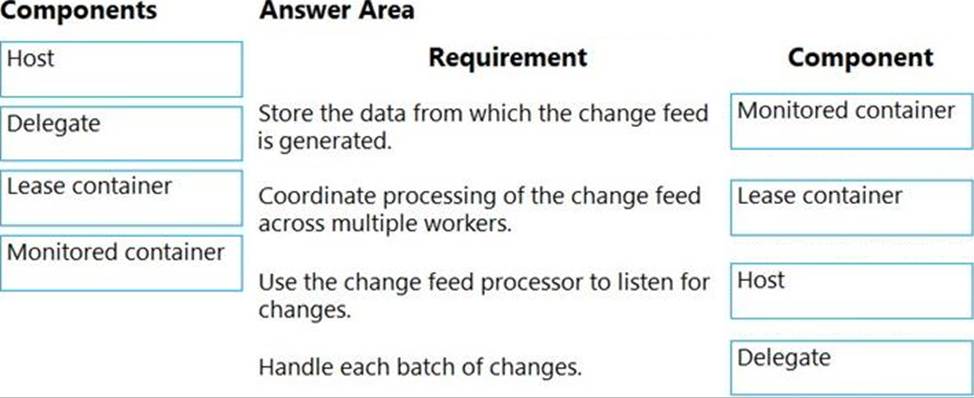

Richtige Antwort:

Explanation:

Box 1: The monitored container

The monitored container has the data from which the change feed is generated. Any inserts and updates to the monitored container are reflected in the change feed of the container.

Box 2: The lease container

The lease container acts as a state storage and coordinates processing the change feed across multiple workers. The lease container can be stored in the same account as the monitored container or in a separate account.

Box 3: The host: A host is an application instance that uses the change feed processor to listen for changes. Multiple instances with the same lease configuration can run in parallel, but each instance should have a different instance name.

Box 4: The delegate

The delegate is the code that defines what you, the developer, want to do with each batch of changes that the change feed processor reads.

Reference: https://docs.microsoft.com/en-us/azure/cosmos-db/change-feed-processor

You are developing a web application that uses Azure Cache for Redis. You anticipate that the cache will frequently fill and that you will need to evict keys.

You must configure Azure Cache for Redis based on the following predicted usage pattern: A small subset of elements will be accessed much more often than the rest.

You need to configure the Azure Cache for Redis to optimize performance for the predicted usage pattern.

Which two eviction policies will achieve the goal? NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

HOTSPOT

You develop new functionality in a web application for a company that provides access to seismic data from around the world. The seismic data is stored in Redis Streams within an Azure Cache for Redis instance.

The new functionality includes a real-time display of seismic events as they occur.

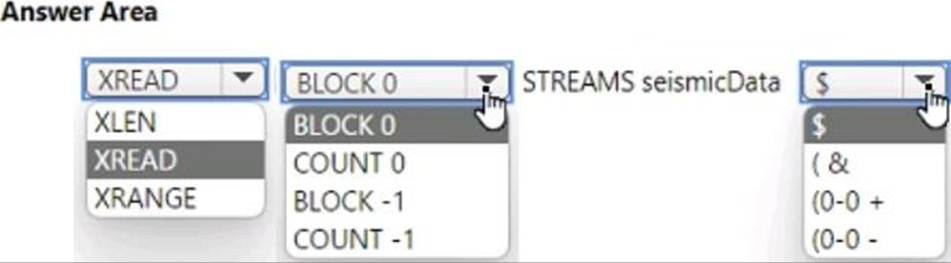

You need to implement the Azure Cache for Redis command to receive seismic data.

How should you complete the command? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

HOTSPOT

You have an Azure API Management instance named API! that uses a managed gateway.

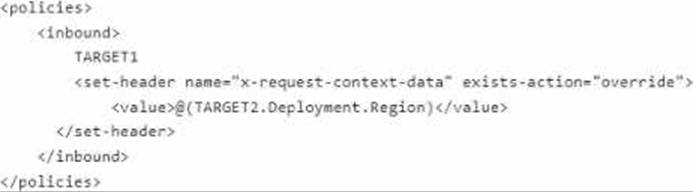

You plan to implement a policy that will apply at a product scope and will set the header of inbound requests to include information about the region hosting the gateway of API1. The policy definition contains the following content.

You have the following requirements for the policy definition:

• Ensure that the header contains the information about the region hosting the gateway of API1.

• Ensure the policy applies only after any global level policies are processed first.

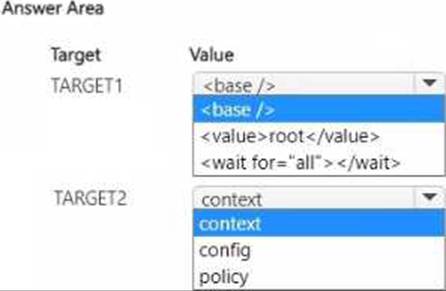

You need to complete the policy definition.

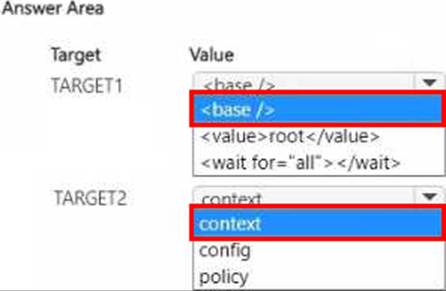

Which values should you choose? To answer, select the appropriate options in the answer area.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

HOTSPOT

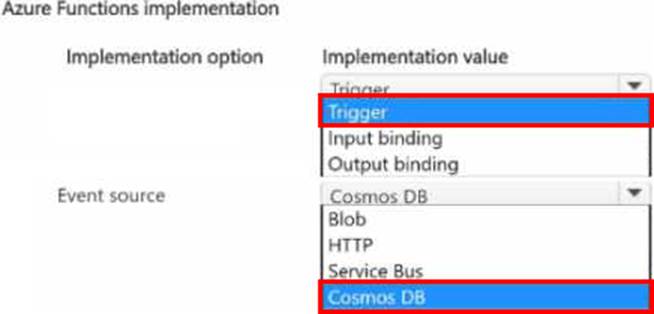

You need to implement a function by using Azure Functions to process customized items.

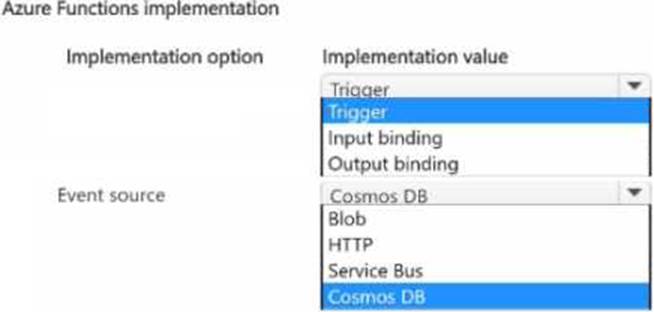

How should you implement the function? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

HOTSPOT

You need to implement a function by using Azure Functions to process customized items.

How should you implement the function? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:
