You are developing a software solution for an autonomous transportation system. The solution uses large data sets and Azure Batch processing to simulate navigation sets for entire fleets of vehicles.

You need to create compute nodes for the solution on Azure Batch.

What should you do?

Lösung einblenden Lösung ausblenden

DRAG DROP

You are developing an application to use Azure Blob storage. You have configured Azure Blob storage to include change feeds.

A copy of your storage account must be created in another region. Data must be copied from the current storage account to the new storage account directly between the storage servers.

You need to create a copy of the storage account in another region and copy the data.

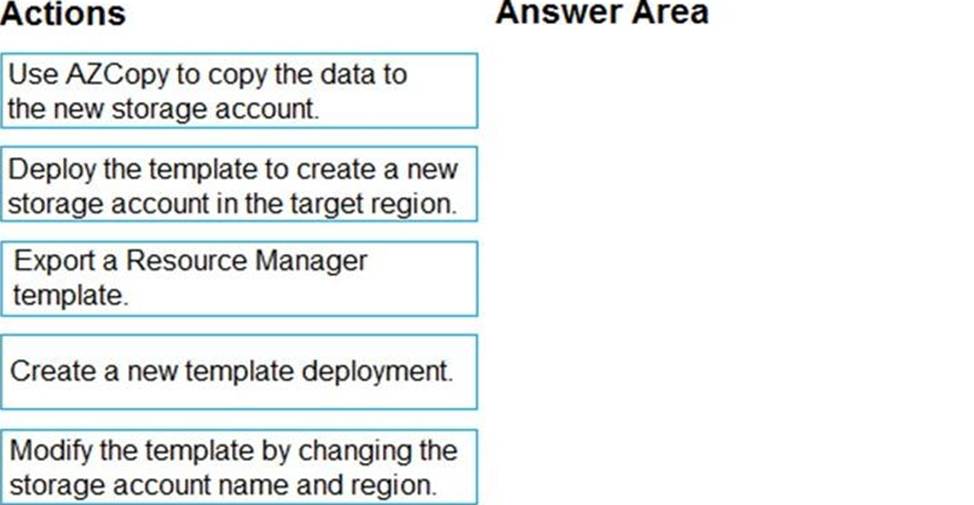

In which order should you perform the actions? To answer, move all actions from the list of actions to the answer area and arrange them in the correct order.

Lösung einblenden Lösung ausblenden

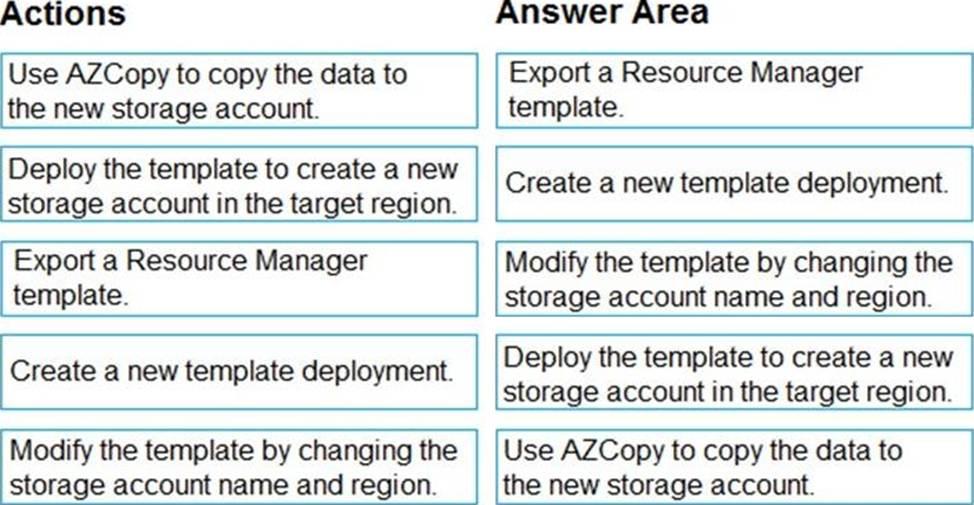

Richtige Antwort:

Explanation:

https://docs.microsoft.com/en-us/azure/storage/common/storage-account-move?tabs=azure-portal#modify-the-template

HOTSPOT

You need to configure the integration for Azure Service Bus and Azure Event Grid.

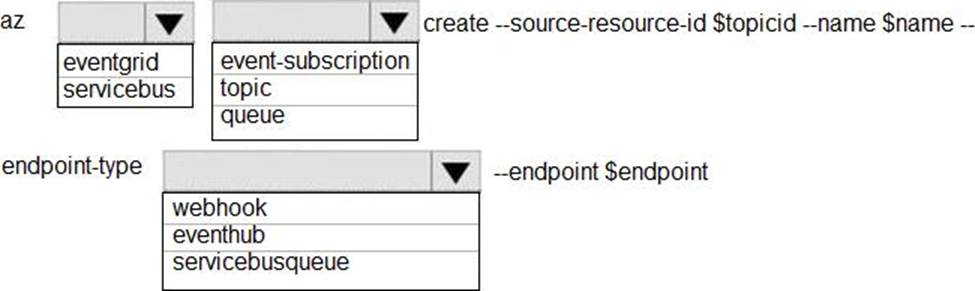

How should you complete the CLI statement? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

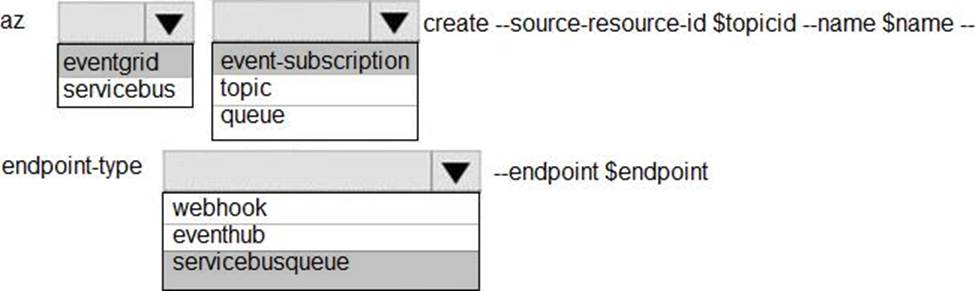

Richtige Antwort:

Explanation:

Box 1: eventgrid

To create event subscription use: az eventgrid event-subscription create

Box 2: event-subscription

Box 3: servicebusqueue

Scenario: Azure Service Bus and Azure Event Grid

Azure Event Grid must use Azure Service Bus for queue-based load leveling.

Events in Azure Event Grid must be routed directly to Service Bus queues for use in buffering.

Events from Azure Service Bus and other Azure services must continue to be routed to Azure Event Grid for processing.

Reference: https://docs.microsoft.com/en-us/cli/azure/eventgrid/event-subscription?view=azure-cli-latest#az_eventgrid_event_subscription_create

DRAG DROP

Fourth Coffee has an ASP.NET Core web app that runs in Docker. The app is mapped to the www.fourthcoffee.com domain.

Fourth Coffee is migrating this application to Azure.

You need to provision an App Service Web App to host this docker image and map the custom domain to the App Service web app.

A resource group named FourthCoffeePublicWebResourceGroup has been created in the WestUS region that contains an App Service Plan named AppServiceLinuxDockerPlan.

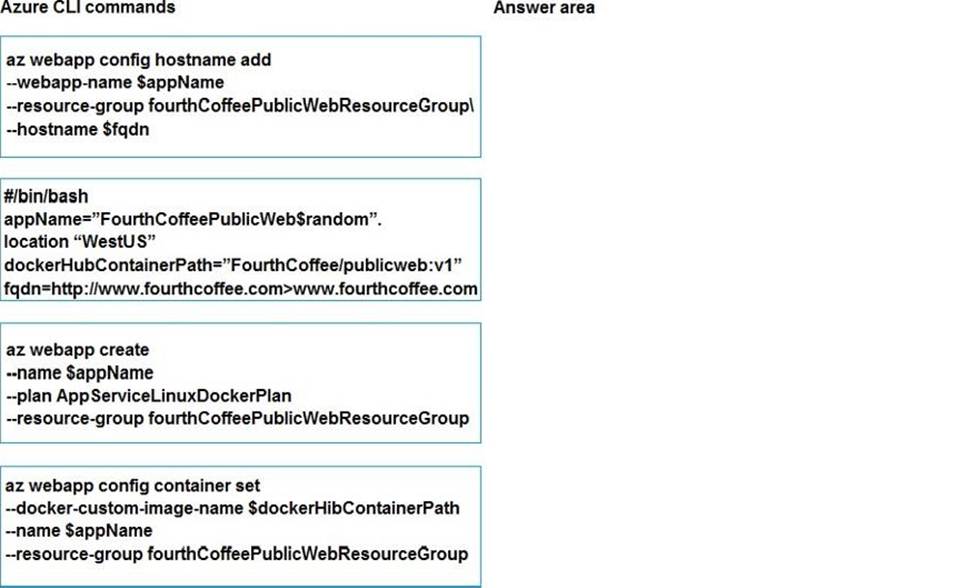

Which order should the CLI commands be used to develop the solution? To answer, move all of the Azure CLI command from the list of commands to the answer area and arrange them in the correct order.

Lösung einblenden Lösung ausblenden

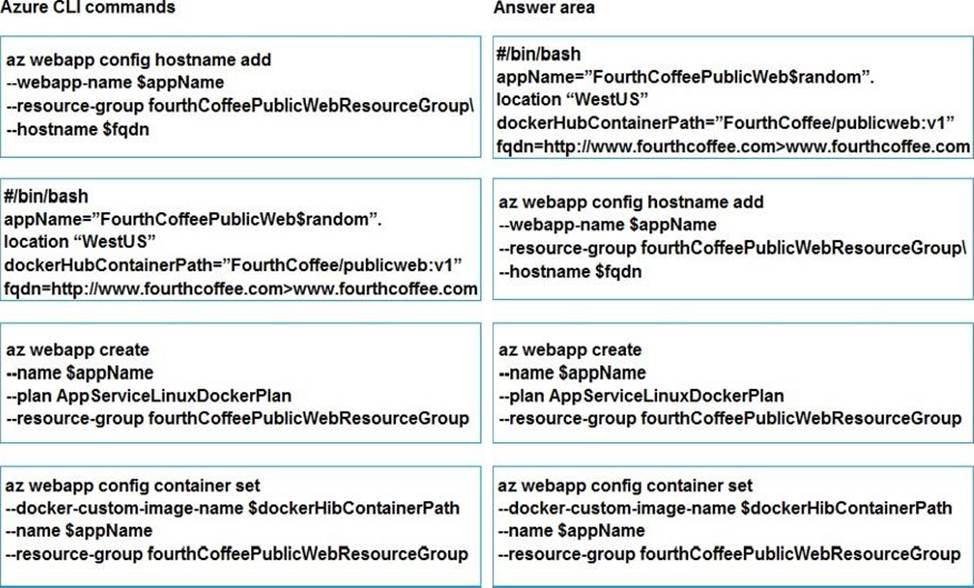

Richtige Antwort:

Explanation:

Step 1: #bin/bash

The appName is used when the webapp-name is created in step 2.

Step 2: az webapp config hostname add

The webapp-name is used when the webapp is created in step 3.

Step 3: az webapp create

Create a web app. In the Cloud Shell, create a web app in the myAppServicePlan App Service plan with the az webapp create command.

Step: az webapp confing container set

In Create a web app, you specified an image on Docker Hub in the az webapp create command. This is good enough for a public image. To use a private image, you need to configure your Docker account ID and password in your Azure web app.

In the Cloud Shell, follow the az webapp create command with az webapp config container set.

Reference: https://docs.microsoft.com/en-us/azure/app-service/containers/tutorial-custom-docker-image

DRAG DROP

Fourth Coffee has an ASP.NET Core web app that runs in Docker. The app is mapped to the www.fourthcoffee.com domain.

Fourth Coffee is migrating this application to Azure.

You need to provision an App Service Web App to host this docker image and map the custom domain to the App Service web app.

A resource group named FourthCoffeePublicWebResourceGroup has been created in the WestUS region that contains an App Service Plan named AppServiceLinuxDockerPlan.

Which order should the CLI commands be used to develop the solution? To answer, move all of the Azure CLI command from the list of commands to the answer area and arrange them in the correct order.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

Step 1: #bin/bash

The appName is used when the webapp-name is created in step 2.

Step 2: az webapp config hostname add

The webapp-name is used when the webapp is created in step 3.

Step 3: az webapp create

Create a web app. In the Cloud Shell, create a web app in the myAppServicePlan App Service plan with the az webapp create command.

Step: az webapp confing container set

In Create a web app, you specified an image on Docker Hub in the az webapp create command. This is good enough for a public image. To use a private image, you need to configure your Docker account ID and password in your Azure web app.

In the Cloud Shell, follow the az webapp create command with az webapp config container set.

Reference: https://docs.microsoft.com/en-us/azure/app-service/containers/tutorial-custom-docker-image

DRAG DROP

Contoso, Ltd. provides an API to customers by using Azure API Management (APIM). The API authorizes users with a JWT token.

You must implement response caching for the APIM gateway. The caching mechanism must detect the user ID of the client that accesses data for a given location and cache the response for that user ID.

You need to add the following policies to the policies file:

• a set-variable policy to store the detected user identity

• a cache-lookup-value policy

• a cache-store-value policy

• a find-and-replace policy to update the response body with the user profile information

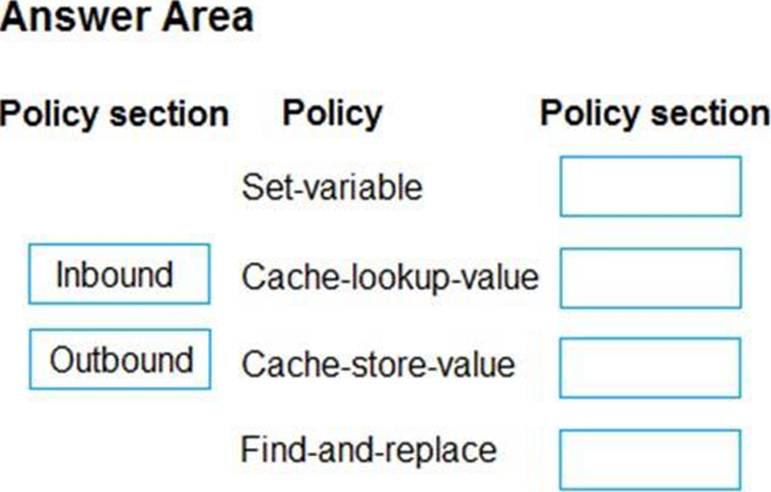

To which policy section should you add the policies? To answer, drag the appropriate sections to the correct policies. Each section may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point

Lösung einblenden Lösung ausblenden

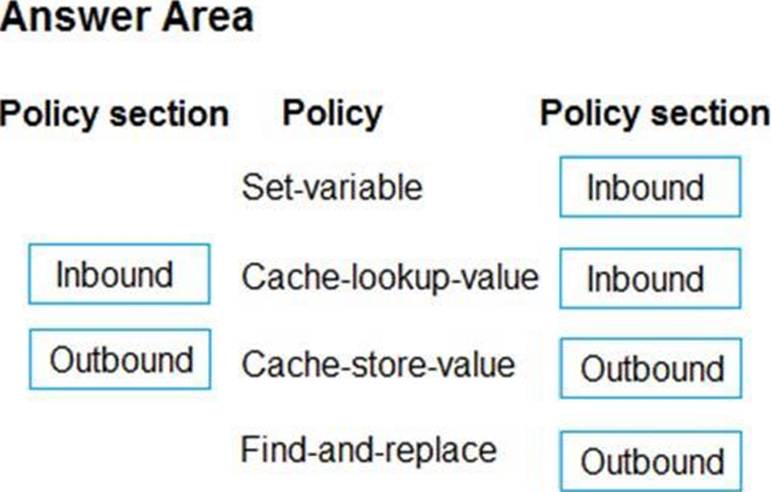

Richtige Antwort:

Explanation:

Box 1: Inbound.

A set-variable policy to store the detected user identity.

Example:

<policies>

<inbound>

<!– How you determine user identity is application dependent –>

<set-variable

name="enduserid"

value="@(context.Request.Headers.GetValueOrDefault("Authorization","").Split(‚ ‚)[1].AsJwt()?.Subject)" />

Box 2: Inbound

A cache-lookup-value policy

Example:

<inbound>

<base />

<cache-lookup vary-by-developer="true | false" vary-by-developer-groups="true | false" downstream-caching-type="none | private | public" must-revalidate="true | false">

<vary-by-query-parameter>parameter name</vary-by-query-parameter> <!– optional, can repeated several times –>

</cache-lookup>

</inbound>

Box 3: Outbound

A cache-store-value policy.

Example:

<outbound>

<base />

<cache-store duration="3600" />

</outbound>

Box 4: Outbound

A find-and-replace policy to update the response body with the user profile information.

Example:

<outbound>

<!– Update response body with user profile–>

<find-and-replace

from=’"$userprofile$"‘

to="@((string)context.Variables["userprofile"])" />

<base />

</outbound>

Reference:

https://docs.microsoft.com/en-us/azure/api-management/api-management-caching-policies

https://docs.microsoft.com/en-us/azure/api-management/api-management-sample-cache-by-key

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it As a result, these questions will not appear in the review screen.

You deploy an Azure Container Apps app and disable ingress on the container app.

Users report that they are unable to access the container app. You investigate and observe that the app has scaled to 0 instances.

You need to resolve the issue with the container app.

Solution: Enable ingress and configure the minimum replicas to 1 for the container app.

Does the solution meet the goal?

Lösung einblenden Lösung ausblenden

HOTSPOT

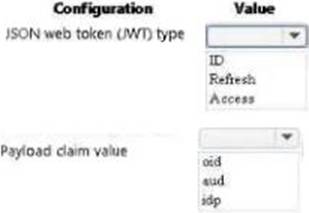

YOU need to reliably identify the delivery driver profile information.

How should you configure the system? To answer, select the appropriate options in the answer area.

NOTE Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

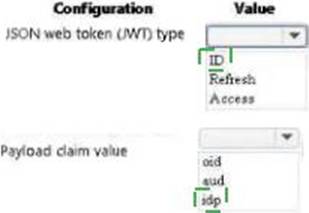

Richtige Antwort:

HOTSPOT

You are developing an Azure Durable Function based application that processes a list of input values. The application is monitored using a console application that retrieves JSON data from an Azure Function diagnostic endpoint.

During processing a single instance of invalid input does not cause the function to fail. Invalid input must be available to the monitoring application.

You need to implement the Azure Durable Function and the monitoring console application.

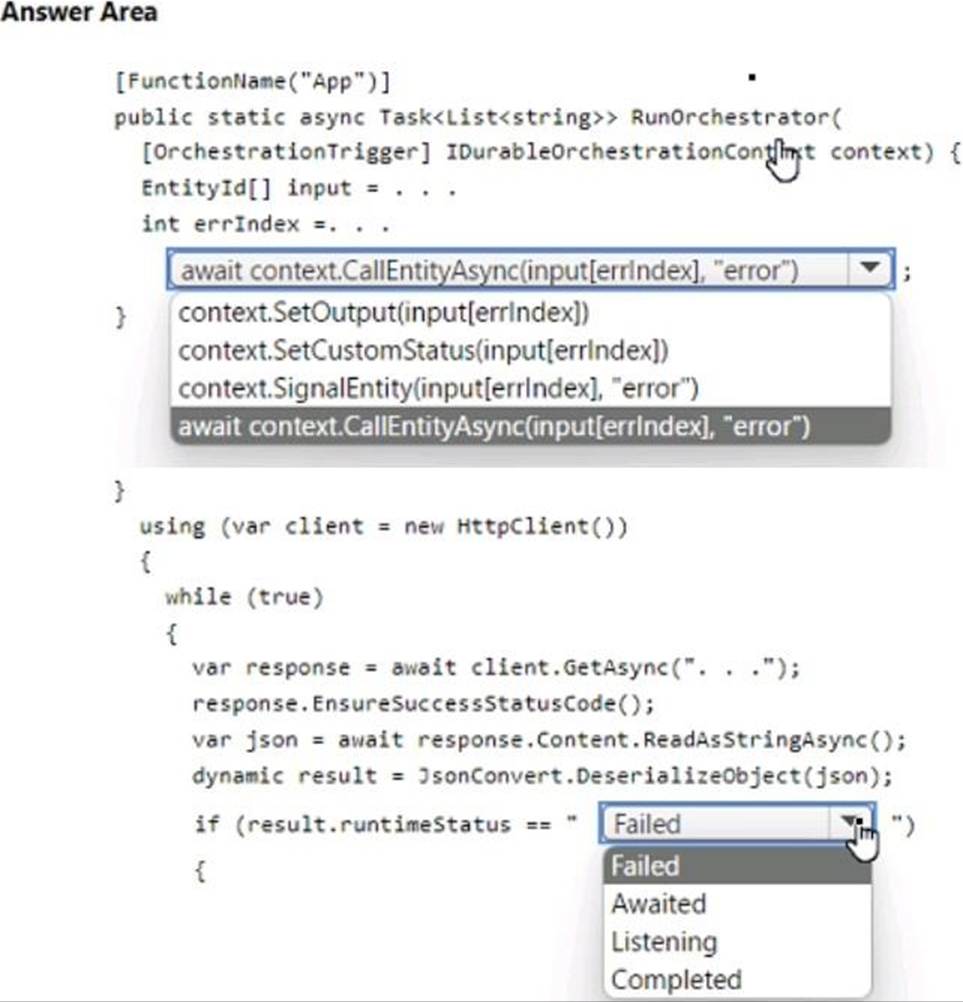

How should you complete the code segments? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

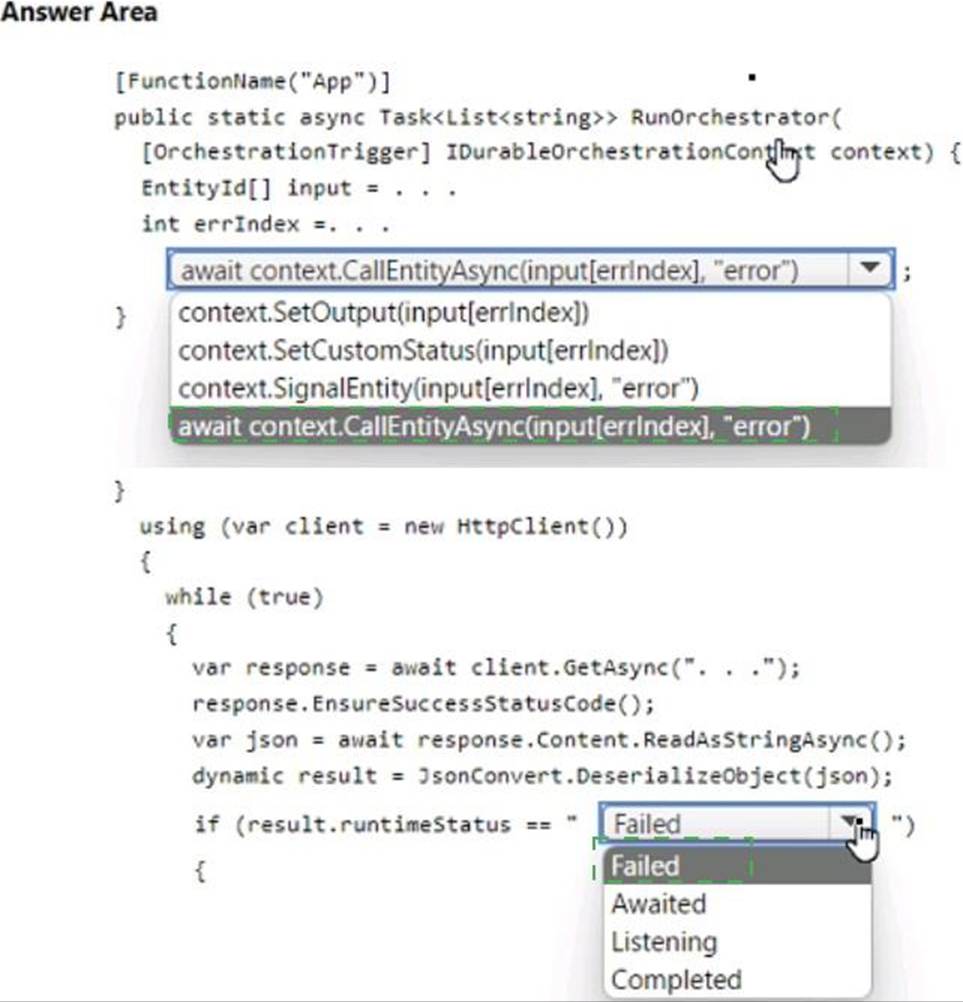

Richtige Antwort:

HOTSPOT

You are developing an Azure Durable Function based application that processes a list of input values. The application is monitored using a console application that retrieves JSON data from an Azure Function diagnostic endpoint.

During processing a single instance of invalid input does not cause the function to fail. Invalid input must be available to the monitoring application.

You need to implement the Azure Durable Function and the monitoring console application.

How should you complete the code segments? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:
