Microsoft AZ-305 Übungsprüfungen
Zuletzt aktualisiert am 24.04.2025- Prüfungscode: AZ-305
- Prüfungsname: Designing Microsoft Azure Infrastructure Solutions
- Zertifizierungsanbieter: Microsoft
- Zuletzt aktualisiert am: 24.04.2025
You need to deploy resources to host a stateless web app in an Azure subscription.
The solution must meet the following requirements:
• Provide access to the full .NET framework.
• Provide redundancy if an Azure region fails.
• Grant administrators access to the operating system to install custom application dependencies.
Solution: You deploy an Azure virtual machine to two Azure regions, and you deploy an Azure Application Gateway.
Does this meet the goal?
- A . Yes
- B . No
Topic 1, Litware, Inc
Case Study
Overview
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview. General Overview
Litware, Inc. is a medium-sized finance company.
Overview. Physical Locations
Litware has a main office in Boston.
Existing Environment. Identity Environment
The network contains an Active Directory forest named Litware.com that is linked to an Azure Active Directory (Azure AD) tenant named Litware.com. All users have Azure Active Directory Premium P2 licenses.
Litware has a second Azure AD tenant named dev.Litware.com that is used as a development environment.
The Litware.com tenant has a conditional acess policy named capolicy1. Capolicy1 requires that when users manage the Azure subscription for a production environment by
using the Azure portal, they must connect from a hybrid Azure AD-joined device.
Existing Environment. Azure Environment
Litware has 10 Azure subscriptions that are linked to the Litware.com tenant and five Azure subscriptions that are linked to the dev.Litware.com tenant. All the subscriptions are in an Enterprise Agreement (EA).
The Litware.com tenant contains a custom Azure role-based access control (Azure RBAC) role named Role1 that grants the DataActions read permission to the blobs and files in Azure Storage.
Existing Environment. On-premises Environment

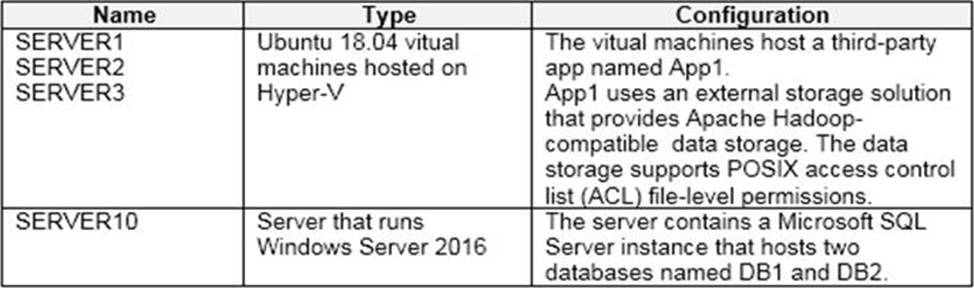

The on-premises network of Litware contains the resources shown in the following table.
Existing Environment. Network Environment
Litware has ExpressRoute connectivity to Azure.
Planned Changes and Requirements. Planned Changes
Litware plans to implement the following changes:
✑ Migrate DB1 and DB2 to Azure.
✑ Migrate App1 to Azure virtual machines.
✑ Deploy the Azure virtual machines that will host App1 to Azure dedicated hosts.
Planned Changes and Requirements. Authentication and Authorization Requirements
Litware identifies the following authentication and authorization requirements:
✑ Users that manage the production environment by using the Azure portal must connect from a hybrid Azure AD-joined device and authenticate by using Azure Multi-Factor Authentication (MFA).
✑ The Network Contributor built-in RBAC role must be used to grant permission to all the virtual networks in all the Azure subscriptions.
✑ To access the resources in Azure, App1 must use the managed identity of the virtual machines that will host the app.
✑ Role1 must be used to assign permissions to the storage accounts of all the Azure subscriptions.
✑ RBAC roles must be applied at the highest level possible.
Planned Changes and Requirements. Resiliency Requirements
Litware identifies the following resiliency requirements:
✑ Once migrated to Azure, DB1 and DB2 must meet the following requirements:
– Maintain availability if two availability zones in the local Azure region fail.
– Fail over automatically.
– Minimize I/O latency.
✑ App1 must meet the following requirements:
– Be hosted in an Azure region that supports availability zones.
– Be hosted on Azure virtual machines that support automatic scaling.
– Maintain availability if two availability zones in the local Azure region fail.
Planned Changes and Requirements. Security and Compliance Requirements
Litware identifies the following security and compliance requirements:
✑ Once App1 is migrated to Azure, you must ensure that new data can be written to the app, and the modification of new and existing data is prevented for a period of three years.
✑ On-premises users and services must be able to access the Azure Storage account that will host the data in App1.
✑ Access to the public endpoint of the Azure Storage account that will host the App1 data must be prevented.
✑ All Azure SQL databases in the production environment must have Transparent Data Encryption (TDE) enabled.
✑ App1 must not share physical hardware with other workloads.
Planned Changes and Requirements. Business Requirements
Litware identifies the following business requirements:
✑ Minimize administrative effort.
✑ Minimize costs.
HOTSPOT

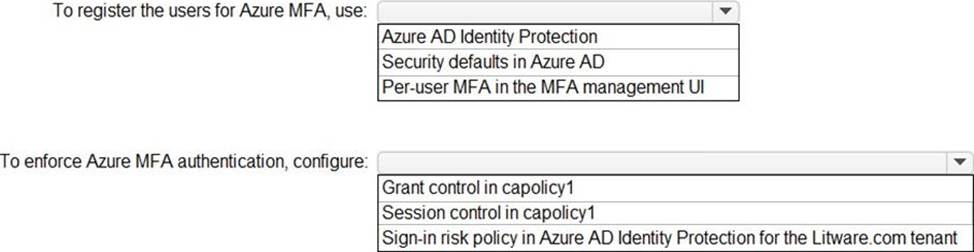

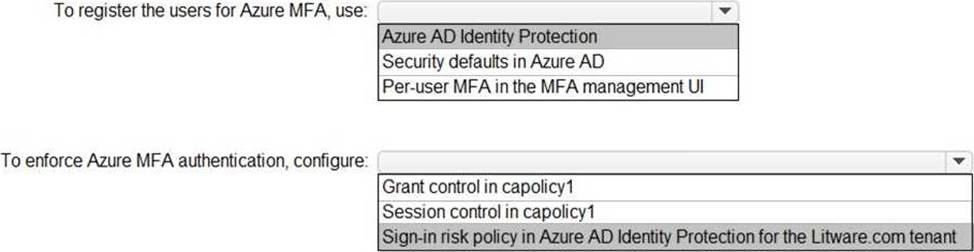

You need to ensure that users managing the production environment are registered for Azure MFA and must authenticate by using Azure MFA when they sign in to the Azure portal. The solution must meet the authentication and authorization requirements.
What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
You need to recommend a strategy for the web tier of WebApp1. The solution must minimize.
What should you recommend?
- A . Create a runbook that resizes virtual machines automatically to a smaller size outside of business hours.
- B . Configure the Scale Up settings for a web app.
- C . Deploy a virtual machine scale set that scales out on a 75 percent CPU threshold.
- D . Configure the Scale Out settings for a web app.
You plan to migrate App1 to Azure.
You need to recommend a network connectivity solution for the Azure Storage account that will host the App1 data. The solution must meet the security and compliance requirements.
What should you include in the recommendation?
- A . a private endpoint
- B . a service endpoint that has a service endpoint policy
- C . Azure public peering for an ExpressRoute circuit
- D . Microsoft peering for an ExpressRoute circuit
You need to design a solution that will execute custom C# code in response to an event routed to Azure Event Grid.
The solution must meet the following requirements:
✑ The executed code must be able to access the private IP address of a Microsoft SQL Server instance that runs on an Azure virtual machine.
Costs must be minimized.
What should you include in the solution?
- A . Azure Logic Apps in the integrated service environment
- B . Azure Functions in the Dedicated plan and the Basic Azure App Service plan
- C . Azure Logic Apps in the Consumption plan
- D . Azure Functions in the Consumption plan
What should you include in the identity management strategy to support the planned changes?
- A . Move all the domain controllers from corp.fabrikam.com to virtual networks in Azure.
- B . Deploy domain controllers for corp.fabrikam.com to virtual networks in Azure.
- C . Deploy a new Azure AD tenant for the authentication of new R&D projects.
- D . Deploy domain controllers for the rd.fabrikam.com forest to virtual networks in Azure.
What should you recommend lo meet the monitoring requirements for App2?
- A . Azure Application Insights
- B . Container insights
- C . Microsoft Sentinel
- D . VM insights
You have an Azure subscription that contains a Basic Azure virtual WAN named Virtual/WAN1 and the virtual hubs shown in the following table.
You have an ExpressRoute circuit in the US East region.
You need to create an ExpressRoute association to VirtualWAN1.
What should you do first?
- A . Upgrade VirtualWAN1 to Standard.
- B . Create a gateway on Hub1.
- C . Create a hub virtual network in US East.
- D . Enable the ExpressRoute premium add-on.
HOTSPOT

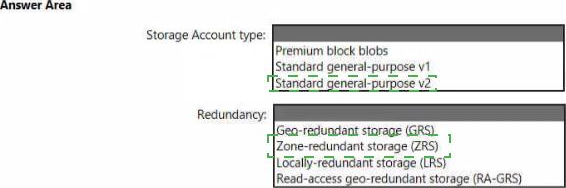

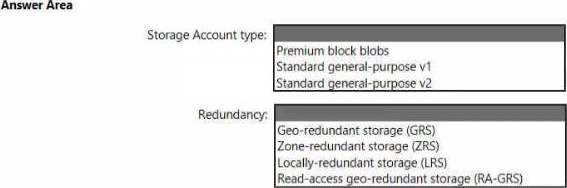

You have an on-premises file server that stores 2 TB of data files.
You plan to move the data files to Azure Blob Storage In the West Europe Azure region,
You need to recommend a storage account type to store the data files and a replication solution for the storage account.
The solution must meet the following requirements:
• Be available if a single Azure datacenter fails.
• Support storage tiers.
• Minimize cost.
What should you recommend? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
HOTSPOT

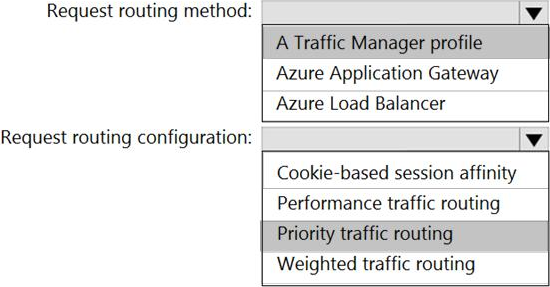

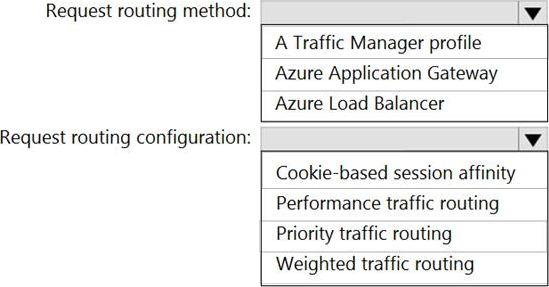

You are designing an Azure web app.
You plan to deploy the web app to the North Europe Azure region and the West Europe Azure region.
You need to recommend a solution for the web app. The solution must meet the following requirements:
Users must always access the web app from the North Europe region, unless the region fails.
The web app must be available to users if an Azure region is unavailable.
Deployment costs must be minimized.
What should you include in the recommendation? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
