Topic 4, HABInsurance

Case Study

Overview

An insurance company, HABInsurance, operates in three states and provides home, auto, and boat insurance. Besides the head office, HABInsurance has three regional offices.

Current environment

General

An insurance company, HABInsurance, operates in three states and provides home, auto, and boat insurance. Besides the head office, HABInsurance has three regional offices.

Technology assessment

The company has two Active Directory forests: main.habinsurance.com and region.habinsurance.com. HABInsurance’s primary internal system is Insurance Processing System (IPS). It is an ASP.Net/C# application running on IIS/Windows Servers hosted in a data center. IPS has three tiers: web, business logic API, and a datastore on a back end. The company uses Microsoft SQL Server and MongoDB for the backend. The system has two parts: Customer data and Insurance forms and documents. Customer data is stored in Microsoft SQL Server and Insurance forms and documents ― in MongoDB. The company also has 10 TB of Human Resources (HR) data stored on NAS at the head office location. Requirements

General

HABInsurance plans to migrate its workloads to Azure. They purchased an Azure subscription.

Changes

During a transition period, HABInsurance wants to create a hybrid identity model along with a Microsoft Office 365 deployment. The company intends to sync its AD forests to Azure AD and benefit from Azure AD administrative units functionality.

HABInsurance needs to migrate the current IPSCustomers SQL database to a new fully managed SQL database in Azure that would be budget-oriented, balanced with scalable compute and storage options. The management team expects the Azure database service to scale the database resources dynamically with minimal downtime. The technical team proposes implementing a DTU-based purchasing model for the new database.

HABInsurance wants to migrate Insurance forms and documents to Azure database service. HABInsurance plans to move IPS first two tiers to Azure without any modifications. The technology team discusses the possibility of running IPS tiers on a set of virtual machines instances. The number of instances should be adjusted automatically based on the CPU utilization. An SLA of 99.95% must be guaranteed for the compute infrastructure.

The company needs to move HR data to Azure File shares.

In their new Azure ecosystem, HABInsurance plans to use internal and third-party applications. The company considers adding user consent for data access to the registered applications

Later, the technology team contemplates adding a customer self-service portal to IPS and deploying a new IPS to multi-region ASK. But the management team is worried about performance and availability of the multi-region AKS deployments during regional outages.

A company has an on-premises file server cbflserver that runs Windows Server 2019. Windows Admin Center manages this server. The company owns an Azure subscription. You need to provide an Azure solution to prevent data loss if the file server fails.

Solution: You decide to create an Azure Recovery Services vault. You then decide to install the Azure Backup agent and then schedule the backup.

Would this meet the requirement?

Lösung einblenden Lösung ausblenden

HOTSPOT

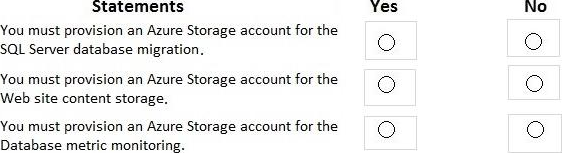

You are evaluating the components of the migration to Azure that require you to provision an Azure Storage account.

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

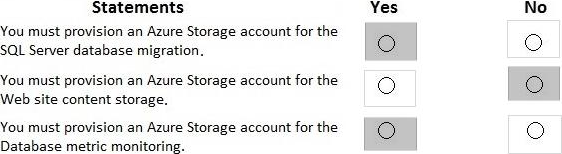

Richtige Antwort:

You are designing an application that will aggregate content for users.

You need to recommend a database solution for the application.

The solution must meet the following requirements:

✑ Support SQL commands.

✑ Support multi-master writes.

✑ Guarantee low latency read operations.

What should you include in the recommendation?

Lösung einblenden Lösung ausblenden

You need to recommend a solution that meets the application development requirements.

What should you include in the recommendation?

Lösung einblenden Lösung ausblenden

HOTSPOT

You are planning an Azure Storage solution for sensitive data. The data will be accessed daily. The data set is less than 10 GB.

You need to recommend a storage solution that meets the following requirements:

• All the data written to storage must be retained for five years.

• Once the data is written, the data can only be read. Modifications and deletion must be prevented.

• After five years, the data can be deleted, but never modified.

• Data access charges must be minimized

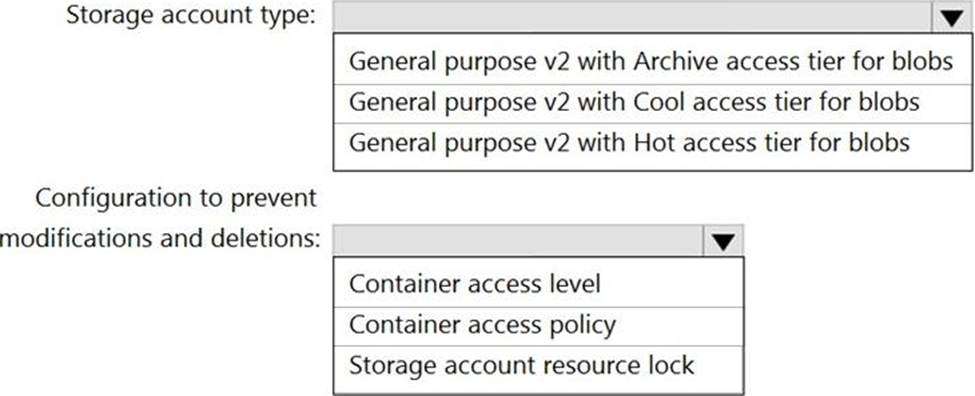

What should you recommend? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

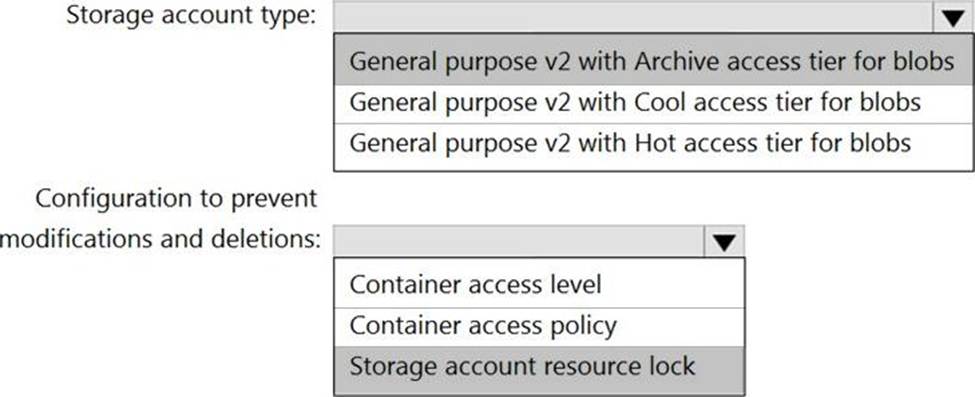

Explanation:

Box 1: General purpose v2 with Archive acce3ss tier for blobs

Archive – Optimized for storing data that is rarely accessed and stored for at least 180 days with flexible latency requirements, on the order of hours.

Cool – Optimized for storing data that is infrequently accessed and stored for at least 30 days.

Hot – Optimized for storing data that is accessed frequently.

Box 2: Storage account resource lock

As an administrator, you can lock a subscription, resource group, or resource to prevent other users in your organization from accidentally deleting or modifying critical resources.

The lock overrides any permissions the user might have.

Note: You can set the lock level to CanNotDelete or ReadOnly. In the portal, the locks are called Delete and Read-only respectively.

✑ CanNotDelete means authorized users can still read and modify a resource, but they can’t delete the resource.

✑ ReadOnly means authorized users can read a resource, but they can’t delete or update the resource. Applying this lock is similar to restricting all authorized users to the permissions granted by the Reader role.

Reference: https://docs.microsoft.com/en-us/azure/storage/blobs/storage-blob-storage-tiers

HOTSPOT

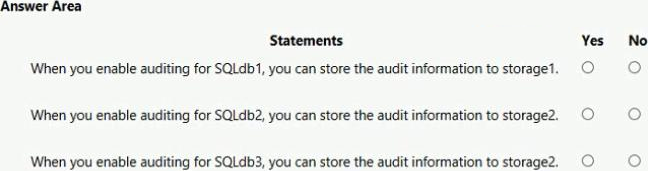

You have an Azure subscription that contains the SQL servers shown in the following table.

The subscription contains the storage accounts shown in the following table.

You create the Azure SQL databases shown in the following table.

Lösung einblenden Lösung ausblenden

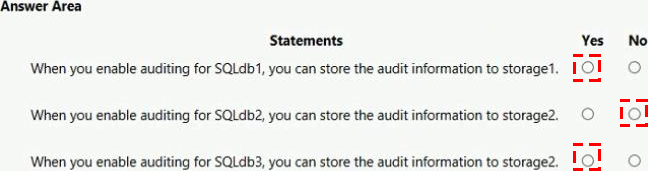

Richtige Antwort:

Explanation:

Box 1: Yes

Be sure that the destination is in the same region as your database and server.

Box 2: No

Box 3: Yes

https://docs.microsoft.com/en-us/azure/sql-database/sql-database-auditing

Reference:

https://docs.microsoft.com/en-us/azure/sql-database/sql-database-auditing

https://docs.microsoft.com/en-us/previous-versions/azure/dn741340(v=azure.100)?redirectedfrom=MSDN

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

Your company has deployed several virtual machines (VMs) on-premises and to Azure. Azure ExpressRoute has been deployed and configured for on-premises to Azure connectivity.

Several VMs are exhibiting network connectivity issues.

You need to analyze the network traffic to determine whether packets are being allowed or denied to the VMs.

Solution: Use the Azure Advisor to analyze the network traffic.

Does the solution meet the goal?

Lösung einblenden Lösung ausblenden

You have SQL Server on an Azure virtual machine. The databases are written to nightly as part of a batch process.

You need to recommend a disaster recovery solution for the data.

The solution must meet the following requirements:

✑ Provide the ability to recover in the event of a regional outage.

✑ Support a recovery time objective (RTO) of 15 minutes.

✑ Support a recovery point objective (RPO) of 24 hours.

✑ Support automated recovery.

✑ Minimize costs.

What should you include in the recommendation?

Lösung einblenden Lösung ausblenden

Topic 2, Fabrikam, inc Case Study A

Overview:

Existing Environment

Fabrikam, Inc. is an engineering company that has offices throughout Europe. The company has a main office in London and three branch offices in Amsterdam Berlin, and Rome.

Active Directory Environment:

The network contains two Active Directory forests named corp.fabnkam.com and rd.fabrikam.com. There are no trust relationships between the forests. Corp.fabrikam.com is a production forest that contains identities used for internal user and computer authentication. Rd.fabrikam.com is used by the research and development (R&D) department only. The R&D department is restricted to using on-premises resources only.

Network Infrastructure:

Each office contains at least one domain controller from the corp.fabrikam.com domain.

The main office contains all the domain controllers for the rd.fabrikam.com forest.

All the offices have a high-speed connection to the Internet.

An existing application named WebApp1 is hosted in the data center of the London office. WebApp1 is used by customers to place and track orders. WebApp1 has a web tier that uses Microsoft Internet Information Services (IIS) and a database tier that runs Microsoft SQL Server 2016. The web tier and the database tier are deployed to virtual machines that run on Hyper-V.

The IT department currently uses a separate Hyper-V environment to test updates to WebApp1.

Fabrikam purchases all Microsoft licenses through a Microsoft Enterprise Agreement that includes Software Assurance.

Problem Statement:

The use of Web App1 is unpredictable. At peak times, users often report delays. At other times, many resources for WebApp1 are underutilized.

Requirements:

Planned Changes:

Fabrikam plans to move most of its production workloads to Azure during the next few years.

As one of its first projects, the company plans to establish a hybrid identity model, facilitating an upcoming Microsoft Office 365 deployment All R&D operations will remain on-premises.

Fabrikam plans to migrate the production and test instances of WebApp1 to Azure.

Technical Requirements:

Fabrikam identifies the following technical requirements:

• Web site content must be easily updated from a single point.

• User input must be minimized when provisioning new app instances.

• Whenever possible, existing on premises licenses must be used to reduce cost.

• Users must always authenticate by using their corp.fabrikam.com UPN identity.

• Any new deployments to Azure must be redundant in case an Azure region fails.

• Whenever possible, solutions must be deployed to Azure by using platform as a service (PaaS).

• An email distribution group named IT Support must be notified of any issues relating to the directory synchronization services.

• Directory synchronization between Azure Active Directory (Azure AD) and corp.fabhkam.com must not be affected by a link failure between Azure and the on premises network.

Database Requirements:

Fabrikam identifies the following database requirements:

• Database metrics for the production instance of WebApp1 must be available for analysis so that database administrators can optimize the performance settings.

• To avoid disrupting customer access, database downtime must be minimized when databases are migrated.

• Database backups must be retained for a minimum of seven years to meet compliance requirement

Security Requirements:

Fabrikam identifies the following security requirements:

* Company information including policies, templates, and data must be inaccessible to anyone outside the company

* Users on the on-premises network must be able to authenticate to corp.fabrikam.com if an Internet link fails.

* Administrators must be able authenticate to the Azure portal by using their corp.fabrikam.com credentials.

* All administrative access to the Azure portal must be secured by using multi-factor authentication.

* The testing of WebApp1 updates must not be visible to anyone outside the company.

HOTSPOT

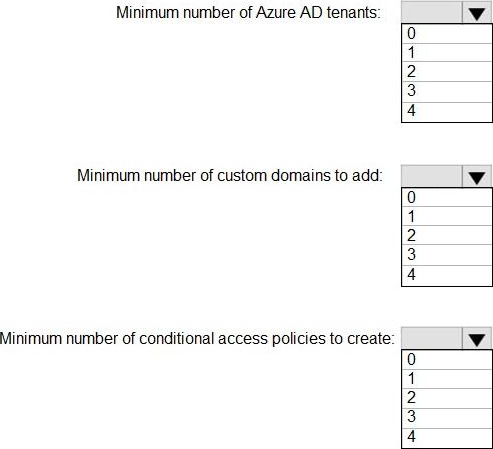

To meet the authentication requirements of Fabrikam, what should you include in the solution? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

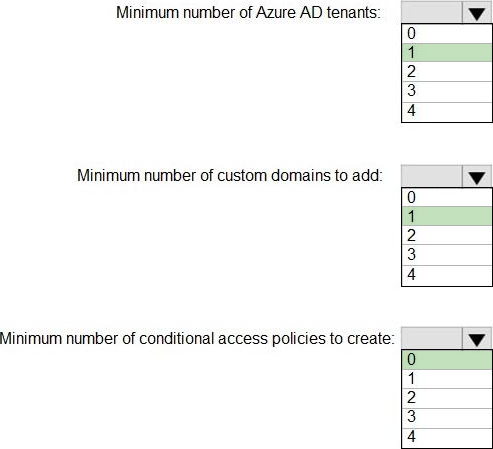

Richtige Antwort:

Explanation:

1

1

0

You plan provision a High Performance Computing (HPC) cluster in Azure that will use a third-party scheduler.

You need to recommend a solution to provision and manage the HPC cluster node.

What should you include in the recommendation?

Lösung einblenden Lösung ausblenden
