Network Appliance NS0-184 Übungsprüfungen
Zuletzt aktualisiert am 27.04.2025- Prüfungscode: NS0-184
- Prüfungsname: NetApp Certified Storage Installation Engineer, ONTAP
- Zertifizierungsanbieter: Network Appliance
- Zuletzt aktualisiert am: 27.04.2025
You installed a new 2-node FAS500f ONTAP 9.8 switchless cluster that serves NAS volumes to both NFSv4.1 and SMB clients. The host operating systems have full flow control enabled on their data ports.
In this scenario, which two flow control settings would you verify? (Choose two.)
- A . Verify that the data network ports have full flow control disabled.
- B . Verify that the cluster network ports have full flow control enabled.
- C . Verify that the data network ports have full flow control enabled.
- D . Verify that the cluster network ports have full flow control disabled.
You finished a new installation and executed Config Advisor successfully. You review the physical racking and cabling on one of the controllers, and notice an amber light that was not previously on.
Which two actions should you perform before you turn over the cluster for production? (Choose two.)
- A . Remove cables connected to the controller until you find the one responsible for the controller issue.
- B . Review AutoSupport messages which could explain the controller state.
- C . Execute Config Advisor again to check for new errors.
- D . Let the customer know the cluster is operating normally while the amber LED is on.

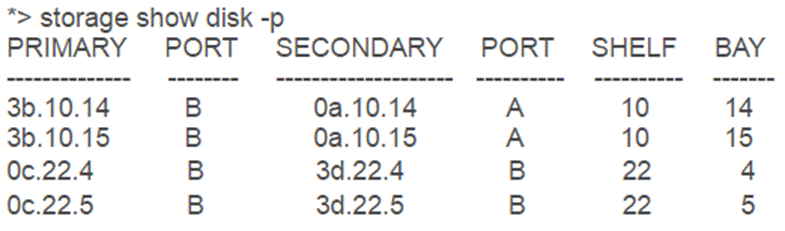

What, if any, cabling configuration does this command output indicate?
- A . Shelf 22 has a faulty 10M in slot A.
- B . The node is connected only to the B paths of shelf 22, so it is not MPHA compliant.
- C . Shelf 10 is assigned to the local node and shelf 22 belongs to the partner node.
- D . The shelves are correctly cabled for MPHA.
Click the Exhibit button.

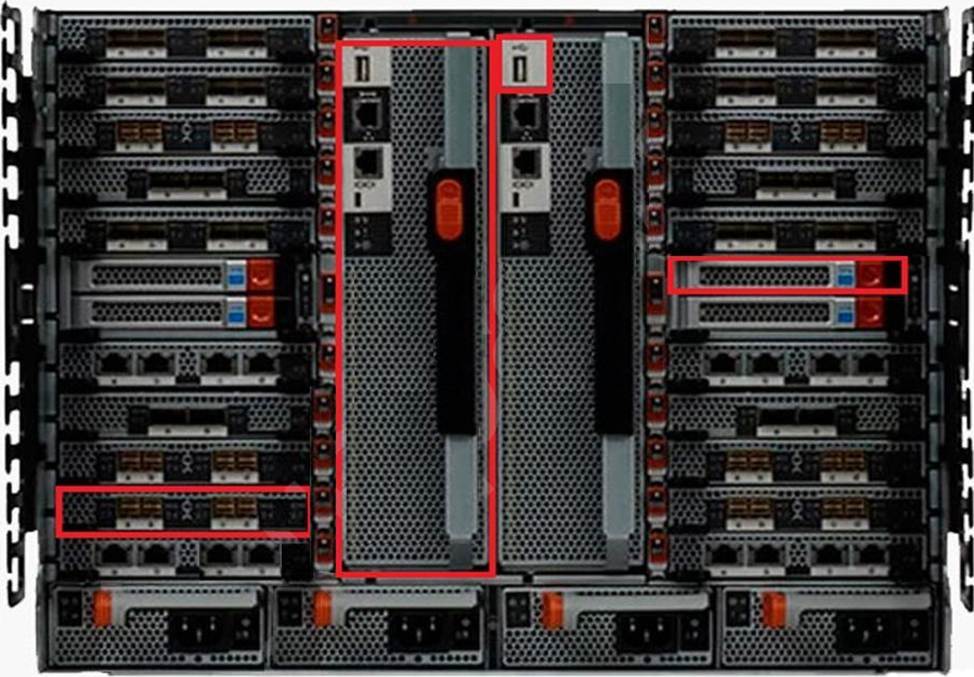

Which set of components on a FAS9000 are highlighted in the exhibit?
- A . FCVI-Module, Controller, Serial-Port, FlashCache-Module
- B . SAS-Module, Controller, USB-Port, FlashCache-Module
- C . NVRAM-Module, Controller, Serial-Port, FlashCache-Module
- D . Powersupply, Controller, USB-Port, NVRAM-Module
You are using Broadcom BES-53248 switches for a cluster interconnect in a base configuration.
In this scenario, what is the minimum number of ISLs supported between the switches?
- A . 1
- B . 2
- C . 3
- D . 4
A customer is using a Cisco Nexus 5020 as a cluster network switch.
What would be used as a management network switch in this scenario?
- A . Cisco Nexus 5020 1GbE ports
- B . Cisco Nexus 5020 Expansion Module
- C . Cisco Catalyst 2960
- D . Cisco Catalyst 5000

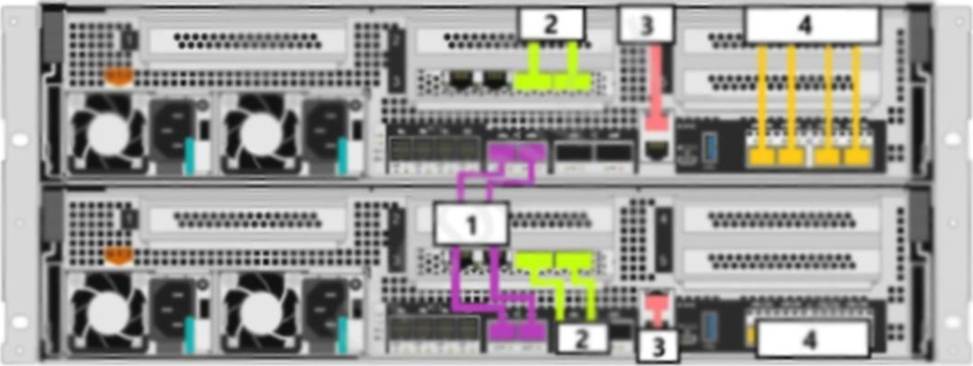

Click the Exhibit button.
You want to add an AFF A400 system to an existing 4-node cluster.
Referring to the exhibit, which number points to the ports that are used to cable the new nodes to the cluster interconnect switches.
- A . 1
- B . 2
- C . 3
- D . 4
You are expanding an existing cluster that uses BES-53248 cluster interconnect switches. You connected the new controllers to ports 0/17 through 0/20. However, you are unable to join the new nodes to the cluster.
Which action must be taken to solve the problem?
- A . Install the license file.
- B . Install the CSHM configuration file.
- C . Install the reference configuration file.
- D . Reboot the controllers.
You are adding nodes to an existing cluster. In this scenario, which three statements are correct? (Choose three.)
- A . If you are adding a second node to a single-node cluster, the second node must have been installed, but the cluster network can be configured later.
- B . You must add a cluster switch for every two nodes.
- C . If you are adding nodes to a multiple-node cluster, more than half of the existing nodes in the cluster must be healthy.
- D . The switchless cluster functionality is supported only in a single or two-node cluster.
- E . If you are adding nodes to a two-node switchless cluster, you must have installed and configured the cluster management and interconnect switches before adding additional nodes.

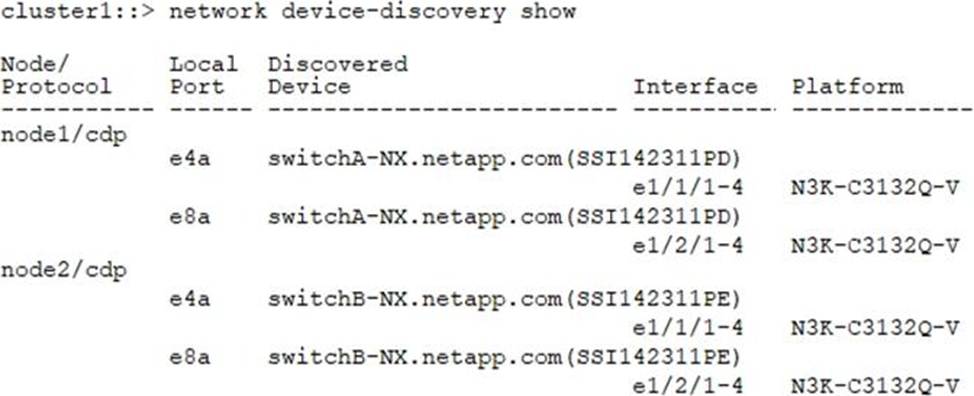

Exhibit:
You are reviewing the setup of a recently installed FAS9000 switched cluster. As shown in the exhibit, the cluster interconnects are connected to a pair of Cisco Nexus 3132Q-V 40 Gb ports.
For a high availability, which ports should swap Ethernet cables?
- A . Swap node2:e4a and node2:e8a.
- B . Swap node1:e8a and node2:e4a.
- C . Swap node1:e4a and node1:e8a.
- D . Swap node1:e4a and node2:e4b.
